Product Details

Description

Features:

• Low Noise and High Intercept Point
• Dual-Band Application GSM900 and DCS1800/PCS1900
• Power Down Control
• SwitchableGain

Application

• GSM/DCS Dual-Band Handsets
• Cellular/PCS Dual-Band Handsets
• General Purpose Amplification
• Commercial and Consumer Systems

Pinout

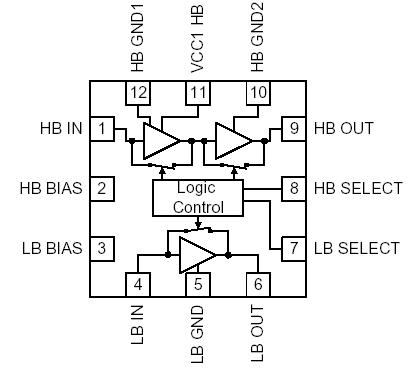

Connection Diagram

Specifications

Parameter	Rating	Unit
Supply Voltage Input RF Level Storage Temperature	-0.5 to +6.0 +10 -40 to +150	VDC dBm °C

Description

The RF2416 is a dual-band low noise amplifier with bypass switch designed for use as a front-end for 950MHz GSM and DCS1800/PCS1900 applications. RF2416 may also be used for dual-band cellular/PCS application. The 900MHz LNA is a single-stage amplifier RF2416 with bypass switch; the 1800/1900 LNA is a two-stage amplifier with bypass switch. Both amplifiers have excellent noise figure and high linearity in both high gain and bypass/low gain mode. The device is packaged in a 3mmx3mm, 12 pin, leadless chip carrier.
