RF2492

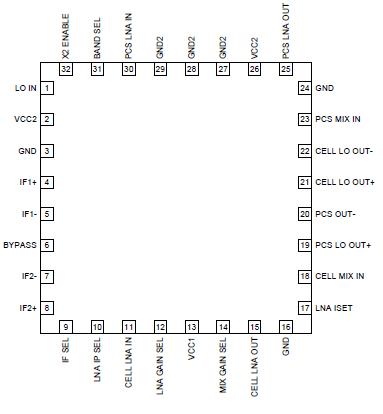

The RF2492 is a fully featured dual-band LNA/Mixer and is usable in a variety of mobile handset applications. The unique dual IF outputs provide interface to two independent IF SAW filters supporting applications such as TDMA-EDGE whe re 30kHz and 200kHz bandwidth SAW filters are used. With independent power management control pins for the LNAs and mixers, either IF output can be accessed from either high- or low-band LNAs, providing maximum flexibility with minimum power usage. Multiple gain control options are provided to achieve a very large dynamic range for the receiver. A frequency doubler is included in the LO circuit to generate both high- and low-band LO signals with a single VCO. The RF2492 is packaged in a 32 pin, 5mmx5mm, leadless plastic package.
