RF2608

Features: Supports Dual Mode Operation+7dBm Output Intercept PointSingle 2.7V to 5.0V Power Supplynternally Matched Inputs and OutputsBuffered OutputDouble-Balanced MixerApplicationCDMA/FM Cellular SystemsSupports Dual-Mode AMPS/CDMASupports Dual-Mode TACS/CDMACommercial and Consumer SystemsBatter...

product image

RF2608 Picture
See larger image
SeekIC No. : 004476303 Detail

RF2608: Features: Supports Dual Mode Operation+7dBm Output Intercept PointSingle 2.7V to 5.0V Power Supplynternally Matched Inputs and OutputsBuffered OutputDouble-Balanced MixerApplicationCDMA/FM Cellular ...

RF2608 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RF2608
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Supports Dual Mode Operation
+7dBm Output Intercept Point
Single 2.7V to 5.0V Power Supply
nternally Matched Inputs and Outputs
Buffered Output
Double-Balanced Mixer


Application

CDMA/FM Cellular Systems
Supports Dual-Mode AMPS/CDMA
Supports Dual-Mode TACS/CDMA
Commercial and Consumer Systems
Battery-Operated Systems


Pinout

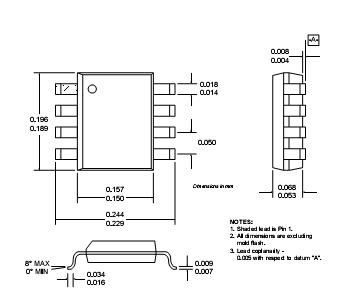

Connection Diagram


Specifications

Parameter Rating Unit
Supply Voltage
Input RF Power
Operating Ambient Temperature
Storage Temperature		 -0.5 to +7
+10
-40 to +85
-40 to +150		 VDC
dBm
°C
°C



Description

The RF2608 is a complete upconverter designed for CDMA/FM cellular applications. The IC contains a dou-ble-balanced mixer stage and an output buffer amplifier stage. This device may also be used to directly BPSK modulate a carrier. The mixer is a Gilbert cell with emitter degeneration resistors to provide high IP3 . The output stage is a class-B, push-pull configuration to reduce the overall current and still provide a good 50 output match.

The RF2608 unit operates at a supply voltage of 2.7V to 5.0V and does not require any external matching components other than coupling capacitors. This circuit is designed as part of the RFMD CDMA chipset, consisting of a Transmit IF AGC Amp, this Transmit Upconverter, a Receive LNA/ Mixer, and a Receive IF AGC Amp.
