Features:

·25 dBm P1dB@3.3V
·21.5 dB gain
·1.5 % EVM @ POUT = +18 dBm with 54 Mbps OFDM signal
·95 mA @ POUT = +18 dBm with 54 Mbps OFDM signal
·Single +3.3V supply voltage
·PA power on/off logic
·Input and output matched to 50 ohms


Application

·802.11b/g WLAN
·2.4 GHz ISM band wireless equipment


Pinout

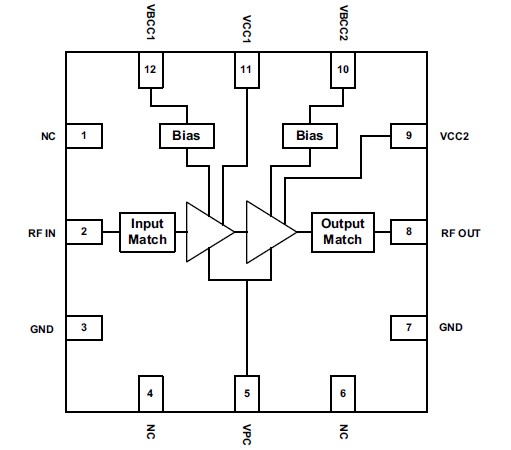

Connection Diagram


Specifications

Parameter
Rating
Unit
DC Power Supply
6.0
V
DC Supply Current
400
mA
Maximum RF input level
+7
dBm
Operating Ambient Temperature
-40 to +85
Storage Temperature
-55 to +150








Description

The RFSP2010 power amplifier is a highperformance GaAs HBT IC designed for use in transmit applications in the 2.4-2.5 GHz frequency band. With a P1dB of 25 dBm, the device is ideal as a final stage for wireless LAN applications requiring high transmit linearity. Designed with propriety linearizing techniques, the part is operable closer to P-1dB, which enables the device RFSP2010 to achieve a specific error vector magnitude (EVM) with less backoff. The PA exhibits unparalleled linearity and efficiency for both 802.11b- and 802.11g-based WLAN systems. The part operates off a single +3.3V supply.
