Part Number: RHFL4913









Description: The RHFL4913 Fixed is a high performance Rad Hard Positive Voltage Regulator family.Available ...


Urgent Purchase

RHFL4913 General Description


The RHFL4913 Fixed is a high performance Rad Hard Positive Voltage Regulator family.

Available into various hermetic ceramic packages,it is specifically intended for Space and harsh radiation nvironments. Input supply range is from 3 to 12 volts.

RHFL4913 Fixed is Qml-V Qualified, DSCC Smd are 5962F02534 / 02535 / 02536 / 02537.

RHFL4913 Maximum Ratings

Symbol
Parameter
Value
Unit
VI DC Input Voltage, VI - VGROUND
14
V
IO Output Current RHFL4913S, ESY
3
A
RHFL4913KP
2
PD TC = 25°C Power Dissipation
15
W
Tstg Storage Temperature Range
-65 to +150
Top Operating Junction Temperature Range
-55 to +150
ESD Electrostatic Discharge Capability
Class 3
Note 1: Exceeding maximum ratings may damage the device.

RHFL4913 Features

· LOW DROPOUT VOLTAGE
· EMBEDDED OVERTEMPERATURE,OVERCURRENT PROTECTIONS
· ADJUSTABLE CURRENT LIMITATION
· OUTPUT OVERLOAD MONITORING/SIGNALLING
· FIXED 2.5; 3.3V; 5.0V OUTPUT VOLTAGES
· INHIBIT (ON/OFF) TTL COMPATIBLE CONTROL
· PROGRAMMABLE OUTPUT SHORT CIRCUIT CURRENT
· REMOTE SENSING OPERATION
· RADHARD: TESTED UP TO 300krad IN MIL 1019.5 AND LOW DOSE RATE CONDITIONS
· HEAVY IONS SEL, SEU FREE. SUSTAINS 2x1014 proton/cm2, AND 2x1014 neutron/cm²

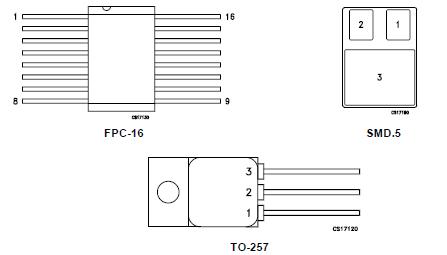

RHFL4913 Connection Diagram

RHFL4913 Connection Diagram

RHFL4913 datasheet

RHFL4913
PDF/DataSheet Download

  • Datasheet: RHFL4913
  • File Size: 190048 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
