RPT-38PB3F: Photodetector Transistors PHOTO Visible Ray Cut Colored Pkg

RPT-38PB3F Data Sheet

US $ .17~.29 / Piece | Get Latest Price

Part Number:: RPT-38PB3F
Mfg:: ROHM Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~500

Unit Price
$.29
$.22
$.2
$.17

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

RPT-160 evaluate
Linear and Switching Power Supplies
RPT-160A evaluate
US $49.3 - 66.4 / Piece

Linear and Switching Power Supplies 5V14A 12V5.5A -5V1A 145W, ACTIVE PFC
RPT-160B evaluate
US $49.3 - 66.4 / Piece

Linear and Switching Power Supplies 5V14A 12V5A -12V 1A 146W, ACTIVE PFC

Product Details

Quick Details

Maximum Power Dissipation :	150 mW	Maximum Dark Current :	0.5 uA
Package / Case :	T-1

Description

Package / Case : T-1
Maximum Power Dissipation : 150 mW
Maximum Dark Current : 0.5 uA

Features:

· High sensitivity.
· Almost no effect from stray light.
· Low cost plastic package.

Application

·Optical control equipment

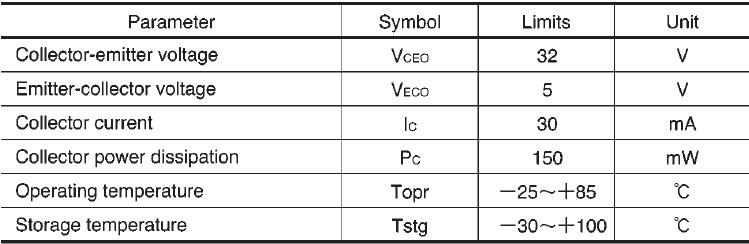

Specifications

Connection Diagram

Description

The RPT-38PB3F is a silicon planar phototransistor. Since it is molded in plastic with a visible light filter, there is almost no effect from stray light. It is particularly suited for use with a ROHM SIR-34ST3F infrared light emitting diode.

Parameters:

Technical/Catalog Information	RPT-38PB3F
Vendor	Rohm Semiconductor
Category	Sensors, Transducers
Voltage - Collector Emitter Breakdown (Max)	32V
Current - Collector (Ic) (Max)	30mA
Current - Dark (Id) (Max)	500nA
Power - Max	150mW
Orientation	Top View
Mounting Type	Through Hole
Package / Case	T-1
Wavelength	800nm
Viewing Angle	72°
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RPT 38PB3F RPT38PB3F 511 1359 ND 5111359ND 511-1359
