S-7600A

Network Controller & Processor ICs TCP/IP PROTOCOL STK

product image

S-7600A Picture
See larger image
SeekIC No. : 00322356 Detail

S-7600A: Network Controller & Processor ICs TCP/IP PROTOCOL STK

S-7600A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S-7600A
Mfg:
Seiko Instruments
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description

Product :
Number of Transceivers :
Data Rate :
Supply Current (Max) :
Maximum Operating Temperature :
Mounting Style :
Package / Case :
Packaging :


Features:

`  Industry standard protocols support :
     TCP/IP (Ver. 4.0)
     PPP (STD-51-compliant)
     UDP
` General purpose sockets : Configured for two sockets
` MPU interface : 68k/x80(MOTO/Intel) bus interface or Synchronous serial interface
` Physical Transport Layer Interface : Universal Asynchronous Receiver/Transmitter (UART)
` Low clock rate : Multiplied four by the bit-rate
` Operating frequency : 256kHz typical
` Low power consumption : Full-transmitting Operating current consumption : 0.9mA typ.
     Non-transmitting Operating current consumption : 150A typ.
     Standby current consumption : 1.0A typ.
`  Stand-by mode : held by RESET signal
`  Wide operating voltage range : 2. 4V to 3.6V
`  Easier application development : portable iAPITM support


Pinout

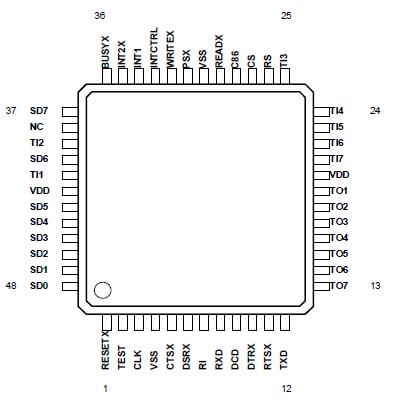

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Storage Temperature
Tsta
-40 to +125
Operating temperature
Topr
-40 to +85
Power supply voltage
VDD
Ta=25
-0.3 to +4.0
V
Input voltage
VIN
Ta=25
VSS-0.3 to VDD+0.3
V
Output voltage
VOUT
Ta=25
VSS to VDD
V
