S1D13806

Features:

• 1280K bytes of embedded synchronous DRAM.
• Multiple CPU interface support.
• Resolutions up to: 800x600 at a color depth of 16 bpp. 1024x768 at a color depth of 8 bpp.
• Display Support for: 4/8/16-bit passive panels. 9/12/18/2x9/2x12 TFT/D-TFD panels. CRT. NTSC and PAL TV Output.
• WINNOV Videum® Cam digital camera interface.
• SwivelView: 90°, 180°, 270° hardware rotation of displayed image.
• EPSON Independent Simultaneous Display: displays different images on different displays.
• Virtual Display Support
• Hardware Cursor or full screen Ink Layer.
• 2D BitBLT Engine.
• Software initiated Power Save Mode.
• Operating System Independent.


Application

• Sales Technical Support
• Customer Training
• Design Assistance

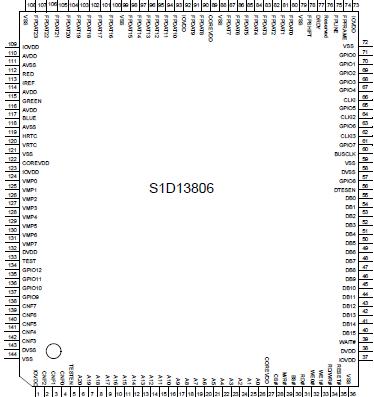

Pinout




Specifications

Symbol	Parameter	Rating	Units
IO VDD	Supply Voltage	VSS - 0.3 to 4.0	V
Core VDD	Supply Voltage	VSS - 0.3 to 4.0	V
DAC VDD	Supply Voltage	VSS - 0.3 to 4.0	V
SDRAM VDD	Supply Voltage	VSS - 0.3 to 4.0	V
VIN	Input Voltage	VSS - 0.3 to VDD + 0.5	V
VOUT	Output Voltage	VSS - 0.3 to VDD + 0.5	V
TSTG	Storage Temperature	-65 to 150	° C
TSOL	Solder Temperature/Time	260 for 10 sec. max at lead	° C

Description

S1D13806 Memory Interface
   • 1280K bytes of embedded synchronous DRAM.
   • Addressable as a single linear address space.
S1D13806 CPU Interface
   • Supports the following interfaces:
      EPSON E0C33 NEC MIPS VR41xx
      Hitachi SH-4/SH-3 PC Card (PCMCIA)
      ISA bus Philips MIPS PR31500/PR31700
      Motorola M68xxx StrongARM (PC Card)
      Motorola MPC8xx Toshiba MIPS TX39xx
      MPU with programmable READY
   • CPU Write buffer.
S1D13806 Display Support
   • LCD Panels: 4/8/16-bit passive LCD interface. 9/12/18/2x9/2x12-bit TFT/D-TFD.
   • CRT: Embedded RAMDAC for direct analog CRT.
   • TV: Composite/S-Video TV output. NTSC/PAL support. Flicker filter. Luminance filter.
S1D13806 Chrominance filter.
   • Maximum resolution of 800x600 at 16 bpp.
   • Maximum resolution of 1024x768 at 8 bpp.
S1D13806 Power Down Mode
   • Software initiated power save mode.
S1D13806 Digital Video Camera Interface
   • Built-in WINNOV Videum® Cam digital camera interface.
S1D13806 Display Modes
   • 4/8/16 bit-per-pixel (bpp) support on LCD, CRT and TV.
   • Up to 64 shades of gray on monochrome LCD panels using
S1D13806 FRM and Dithering.
   • Up to 64K colors on passive LCD, active matrix TFT/D-TFD, CRT and TV in 16 bpp modes.
   • SwivelView: 90°, 180°, 270° hardware rotation of displayed image
   • EPSON Independent Simultaneous Display: displays different images on different displays.
   • Virtual Display Support: displays images larger than the panel size through the use of panning.
   • Hardware Cursor or full screen Ink Layer.
Acceleration
   • 2D Engine including the following BitBLTs:
      Write BLT Move BLT
      Solid Fill Pattern Fill
      Transparent Write BLT Transparent Move BLT
      Read BLT Color Expansion
      Move BLT with Color Expansion
Operating Voltage
   • COREVDD 3.0 to 3.6 volts and IOVDD 3.0 to 3.6 volts.
General Purpose IO Pins
   • 13 General Purpose IO pins.
Package
   • 144-pin QFP20
   • 220-pin PFBGA
