Part Number:: S1D2518X01
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

S1D2140B03 evaluate
Features: • 3-Channel R/G/B Video Amplifier, 110MHz Bandwidth• TTL OSD Input, 50MHz Ba...
S1D2141X01 evaluate
Features: • 3 - channel R/G/B Video Amplifier: 85MHz bandwidth.• DC contrast control r...
S1D2147A01 evaluate
Features: • Dual Pll concept• Self-adaptative (30 to 70kHz)• X-ray protection in...

Product Details

Description

Features:

• 3-channel matched R/G/B Video Amplifier
• I2C BUS control items - Contrast control - Brightness control - SUB contrast control for each channel - OSD contrast control - Cut-off control for each channel - Brightness control for cut-off - Switch registers for SBLK, half tone, NSS (No Signal Switch: Blank video signal except OSD signal) and CPS (Clamp Pulse Input Polarity Selection).
• Built in clamp gate with anti OSD sagging
• Built in OSD Interface, OSD BLK
• Built in OSD Intensity Interface
• Built in ABL (Automatic Beam Limitation)
• Built in video input clamp, BRT clamp
• Built in video & OSD half tone function on OSD picture.
• 3-channel R/G/B video amplifier 150MHz @f-3dB
• TTL OSD inputs, 80MHz bandwidth
• Contrast control range: 38dB
• SUB contrast control range: 11dB
• OSD contrast control range: 38dB
• Capable of 7Vp-p output swing
• High speed OSD BLK
• Single DAC output

Pinout

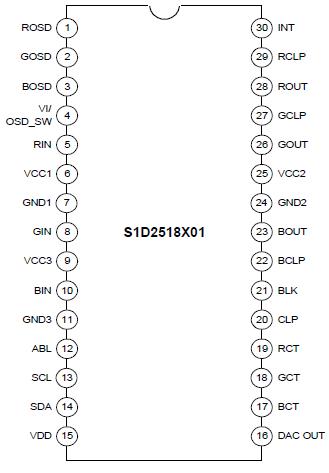

Connection Diagram

Specifications

NO	Item	Symbol	Vlaue			Unit
NO	Item	Symbol	Min	Typ	Max	Unit
1	Maximum Supply Voltage	V_cc 1/2/3	-	-	15	V
2	Operating Temperature ^(see2)	T_OPR	-25	-	75
3	Storage Temperature	T_STG	-65	-	150
4	Power Dissipation	P_D	-	-	1.2	W
5	Logic part power supply	V_DD	-	-	6	V
