Product Details

Description



Features:

· CDMA/AMPS Dual Mode
· AGC input signal range : 90dB
· QPSK Baseband Converter
· Built-in I ,Q Baseband signal extractor LPF
· Built-in 4-bit ADC for converting I and Q CDMA analog baseband signals to digital baseband signals
· Built-in 8-bit ADC for converting I and Q FM analog baseband signals to digital baseband signals
· Adopts the Rx SLOT function to minimize the AMPS Mode consumption power
· Built-in VCO for baseband conversion
· Built-in Modem PDM control circuit to compensate the I and Q offsets
· 3-Line Serial Port Interface (SPI)


Pinout

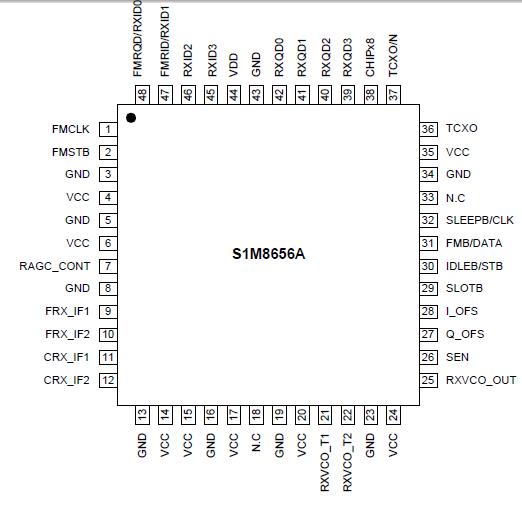

Connection Diagram


Specifications

Characteristic
Symbol
Value
Power supply
VCC
-0.5V to 3.6V
Storage temperature
TSTG
-55°C to +125°C
Operating Temperature
TOPR
-30°C to +85°C
Storage temperature
HBM
± 1500V
Electrostatic discharge rating
MM
± 200V
