S1M8833

Features: ` High operating frequency dual synthesizer - S1M8831A: 0.71 to 1.2GHz(RF)/ 45 to 520MHz(IF) - S1M8833: 1.6 to 1.65GHz(RF)/ 45 to 520MHz(IF)` Operating voltage range: 2.7 to 4.0V` Low current consumption (S1M8831A: 5.0mA, S1M8833: 7.0mA)` Selectable power saving mode (ICC = 1uA typical @...

product image

S1M8833 Picture
See larger image
SeekIC No. : 004481479 Detail

S1M8833: Features: ` High operating frequency dual synthesizer - S1M8831A: 0.71 to 1.2GHz(RF)/ 45 to 520MHz(IF) - S1M8833: 1.6 to 1.65GHz(RF)/ 45 to 520MHz(IF)` Operating voltage range: 2.7 to 4.0V` Low curr...

S1M8833 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S1M8833
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High operating frequency dual synthesizer - S1M8831A: 0.71 to 1.2GHz(RF)/ 45 to 520MHz(IF) - S1M8833: 1.6 to 1.65GHz(RF)/ 45 to 520MHz(IF)
` Operating voltage range: 2.7 to 4.0V
` Low current consumption (S1M8831A: 5.0mA, S1M8833: 7.0mA)
` Selectable power saving mode (ICC = 1uA typical @ 3V)
` Dual-modulus prescaler and Fractional-N/Integer-N: - S1M8831A (RF) 8/9 Fractional-N - S1M8833 (RF) 16/17 Fractional-N - S1M8831A/33 (IF) 8/9 Integer-N
` Excellent in-band phase noise ( 85dBc/Hz @ PCS, -90dBc/Hz @CDMA) Improved fractional spurious performance ( < 80dBc)
` Frequency resolution (= 10kHz/64 @ fref = 9.84MHz)
` Fast channel switching time: < 500us
` Programmable charge pump output current: from 50uA to 800uA in 50uA steps
` Programmability via on-chip serial bus interface




Application

· High-rate data-service cellular telephones (for CDMA): S1M8831A, S1M8833
· High-rate data-service portable wireless communications (for Korean-PCS): S1M8833
· Other wireless communications systems

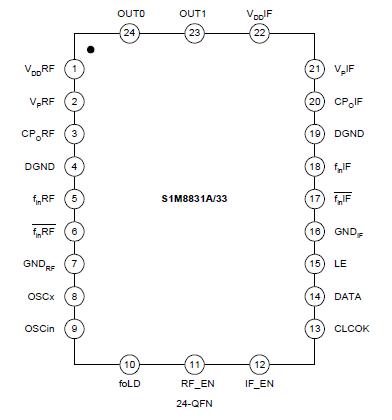

Pinout

Connection Diagram


Specifications

Characteristic
Symbol
Value
Unit
Power supply voltage
VDD
0.0 to 4.0
V
Voltage on any pin with GND = 0 volts
V1
-0.3 to VDD+0.3
V
Power dissipation
PD
600
mW
Operating Temperature
Ta
-40 to +85
Storage temperature
TSTG
-65 to +150
