Features:

• Complies with Bellcore and ITU-T
   specifications for jitter tolerance, jitter transfer
   and jitter generation
• On-chip high frequency PLL with internal loop
   filter for clock recovery
• Supports clock recovery for OC-12/STM-4
   (622.08 Mbit/s) or OC-3/STM-1 (155.52 Mbit/s) NRZ data
• 19.44 MHz reference frequency
• Lock detect-monitors frequency
• 264 mW typical power dissipation
• Low-jitter LVPECL interface
• Maintains downstream clock in absence of data inputs
• 3.3V supply
• Available in a 20 pin TSSOP package
• Active High LVPECL Signal Detect


Pinout

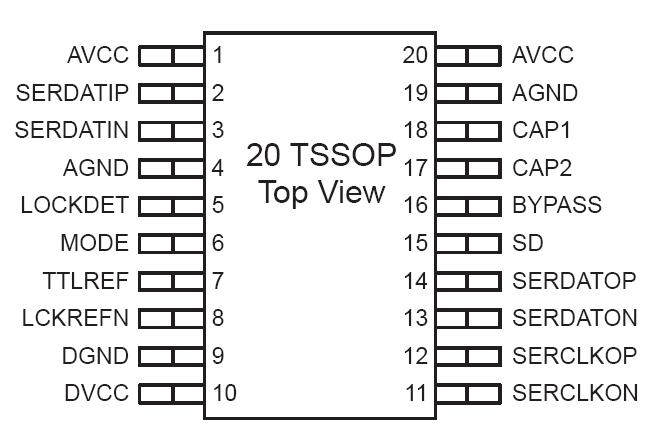

Connection Diagram


Specifications

Parameter Min Typ Max Units
Storage Temperature -65   150 °C
Voltage on VCC with Respect to GND -0.5   +7.0 V
Voltage on any LVTTL Input Pin -0.5   VCC V
Voltage on any LVPECL Input Pin V CC
2.0		   VCC V
LVTTL Output Sink Current     20 mA
LVTTL Output Source Current     10 mA
High Speed LVPECL Output Source Current     50 mA



Description

The function of the S3024 clock recovery unit is to derive high speed timing signals for SONET/SDHbased equipment. The S3024 is implemented using AMCC's proven Phase Locked Loop (PLL) technology.

The S3024 receives either an OC-12/STM-4 or OC-3/ STM-1 scrambled NRZ signal and recovers the clock from the data. The chip outputs a differential LVPECL bit clock and retimed data. Figure 1 shows a typical network application.

The S3024 utilizes an on-chip PLL which consists of a phase detector, a loop filter, and a Voltage Controlled Oscillator (VCO). The phase detector compares the phase relationship between the VCO output and the serial data input. A loop filter of S3024 converts the phase detector output into a smooth DC voltage, and the DC voltage is input to the VCO whose frequency is varied by this voltage. A block diagram is shown in Figure 2.
