Product Details

Description



Features:

` Built-in current-integration readout circuit utilizing video line capacitance and impedance conversion circuit (boxcar waveform output)
`Wide active area
   Pixel pitch: 50 m (S3921 series)
                     25 m (S3924 series)
   Pixel height: 2.5 mm
`High UV sensitivity with good stability
`Low dark current and high saturation charge allow a long integration time and a wide dynamic range at room temperature
`Excellent output linearity and sensitivity spatial uniformity
`Low voltage, single power supply operation
`Start pulse, clock pulse and video line reset pulse are CMOS logic compatible


Application

·Multichannel spectrophotometry
· Image readout system

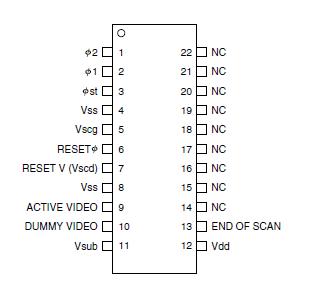

Pinout

Connection Diagram

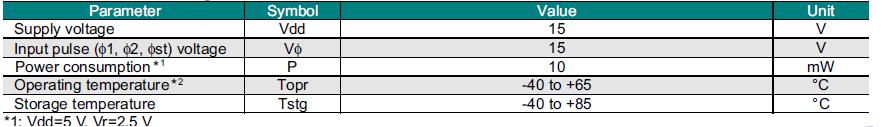

Specifications

Connection Diagram
