S3C7281

Features: Memory` 1024 x 8 bit program memory` 64 x 4 bit data memory (Including stack and excluding LCD RAM)14 I/O Pins` I/O: 6 pins` Output: 8 pins(Sharing with segment outputs)8-Bit Basic Timer` 4 clock source(0.26, 2.1, 8.2, 32.8ms at 1MHz)` Watch-dog timerWatch Timer` Quasi interrupt(stand by...

product image

S3C7281 Picture
See larger image
SeekIC No. : 004482096 Detail

S3C7281: Features: Memory` 1024 x 8 bit program memory` 64 x 4 bit data memory (Including stack and excluding LCD RAM)14 I/O Pins` I/O: 6 pins` Output: 8 pins(Sharing with segment outputs)8-Bit Basic Timer` ...

S3C7281 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S3C7281
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Memory
` 1024 x 8 bit program memory
` 64 x 4 bit data memory (Including stack and excluding LCD RAM)

14 I/O Pins
` I/O: 6 pins
` Output: 8 pins(Sharing with segment outputs)

8-Bit Basic Timer
` 4 clock source(0.26, 2.1, 8.2, 32.8ms at 1MHz)
` Watch-dog timer

Watch Timer
` Quasi interrupt(stand by release mode only)
` Time divider: 3.91, 32, 125, 500ms at fw=32.8kHz
` BUZ, BUZ output(0.5, 1, 2, 4kHz at 1MHz<main>, 32.8kHz<sub>)

Key Interrupt input(Quasi-interrupt)
` Falling edge detection(KS0, KS1)
` Stand by mode(idle, stop) release

Power on RESET (Program ROM MASK option)
` Initial power on RESET
` Reset operation under 2.0V

LCD Display
` 16 segments and 4 common pins
` 2, 3, and 4 common selectable
` Internal resistor for LCD bias(170 K)

Memory Mapped I/O Structure
` Data memory bank 15

Power-Down Modes
` Idle: only CPU clock stops
` Stop: Main System clock and CPU clock stops
` Subsystem clock stop mode

Oscillation Sources
` Main: Internal RC OSC(1MHz)
` Sub: External 32.8kHz crystal only

Instruction Execution Times
` Main system clocks:4, 8, 64ms at 1MHz
` Subsystem clocks: 122 s at 32.768 kHz

Operating Voltage Range
` 1.8 V to 5.5 V at 1MHz/32.8kHz

Power Consumption(The LVD circuit needs 100uA or more current on all the below mode)
` Main: Operation - 0.5mA at 1MHz, 3V
` Sub: Operation - 12mA at LCD off, 3V Idle - 5mA at LCD off idle, 3V Stop - 1mA at 5.5V

Operating Temperature
` - 40   to 85

Package Type
` 32-SOP-450A Package



Pinout

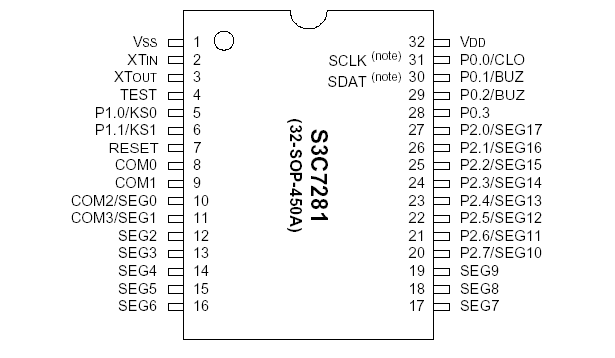

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +6.5
V
Input voltage
VI
Ports 0, 1
0.3 to VDD + 0.3
V
Output voltage
VO
-
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O pin active
-15
mA
All I/O pins active
30
Output current low
IOL
One I/O pin active
+ 30 (Peak value)
mA
+ 15(note)
Total for pins 0, 1, 2
+ 100 (Peak value)
+ 60(note)
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150

NOTE: The values for Output Current Low ( IOL ) are calculated as Peak Value *Duty.


Description

The S3C7281 is a SAM48 core-based 4-bit CMOS single-chip microcontroller. It is built around the SAM48 core CPU and contains ROM, RAM. 14 I/O lines, buzzer and inverted buzzer output, and LCD driver/controller with an up-to-64-dot.

The S3C7281 can be used for dedicated control functions in a variety of applications, and is especially designed for LCD general purpose.
