S3C72H8

Features: Architecture SAM47 4-bit CPU coreMemory Data Memory: 512 * 4 bits Program Memory: 8196 * 8 bits (Including LCD display RAM)Memory-Mapped I/O Structure Data memory bank 15Interrupts Three internal vectored interrupts Three external vectored interrupts Two quasi-interrupts8-Bit Time...

product image

S3C72H8 Picture
See larger image
SeekIC No. : 004482105 Detail

S3C72H8: Features: Architecture SAM47 4-bit CPU coreMemory Data Memory: 512 * 4 bits Program Memory: 8196 * 8 bits (Including LCD display RAM)Memory-Mapped I/O Structure Data memory bank 15Interrupts Th...

S3C72H8 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S3C72H8
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Architecture
  SAM47 4-bit CPU core

Memory
  Data Memory: 512 * 4 bits
  Program Memory: 8196 * 8 bits (Including LCD display RAM)

Memory-Mapped I/O Structure
  Data memory bank 15

Interrupts
  Three internal vectored interrupts
  Three external vectored interrupts
  Two quasi-interrupts

8-Bit Timer/Counter (T0)
  Programmable 8-bit timer
  External event counter
  Arbitrary clock frequency output
  External clock signal divider

16-Bit Frequency Counter (FC)
  a 16-bit binary up-counter
  External event counter
  Gate function control

Watch-Dog TIMER and Basic Timer
  8-bit counter + 3-bit counter
  Overflow signal of 8-bit counter makes a basic timer interrupt. And control the oscillation
      warmup time
  Overflow signal of 3-bit counter makes a system reset

Watch Timer
  Real-time and interval time measurement
  Four frequency outputs to buzzer sound
   Clock source generation for LCD

LCD Controller/Driver
  26 segment and 4 common terminals
  Maximum 13-digit LCD direct drive capability
  Display modes: Static, 1/2, 1/3, 1/4 duty
  Voltage regulator and booster (1/3 bias: 1, 2, or 3V, 1/2 bias: 1.5, 3V)

Analog Comparator
  2 Ch Comparator (Each CnP, CnN, CnOUT pins)

Bit Sequential Carrier
  Support 16-bit serial data transfer in arbitrary format

I/O Ports
  21 pins for standard I/O
  26 pins for LCD segment output
  4 pins for LCD common output
  Two input pins for external interrupts

Oscillation Sources
  Crystal, ceramic, or RC for main system clock
  Crystal or external oscillator for subsystem clock
  Main system clock frequency: 4.19 MHz (typical)
  Subsystem clock frequency: 32.768 kHz
  CPU clock divider circuit (by 4, 8, or 64 main, and by 4 for sub clock)

Power Down Mode
  Idle mode (only CPU clock stops)
  Stop mode (main or sub-system oscillation stops)

Voltage Level Detector
  VDD level detection circuit (2.2, 2.4, 3, or 4.0V)
  External pin level detect mode

Operating Voltage Range
  1.8V to 5.5V at 3 MHz
  2.0V to 5.5V at 4.19 MHz

Package Type
64-pin QFP



Pinout

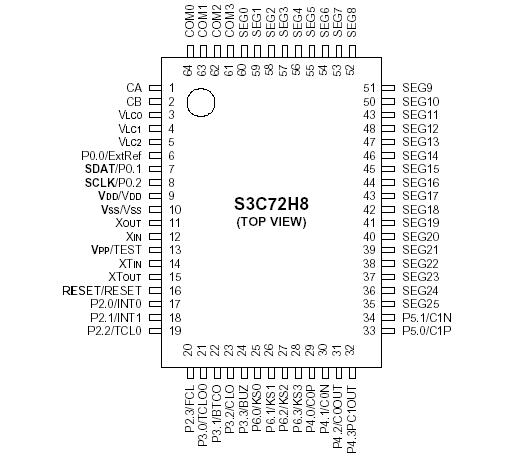

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to + 6.5
V
Input voltage
VIN
 -
0.3 to VDD + 0.3
Output voltage
VO
All I/O ports
-0.3 to VDD + 0.3
Output current high
IOH
 One I/O pin active
-7
mA
All I/O ports active
-40
Output current low
IOL
 One I/O pin active
+ 15
mA
Total pin circuit
+ 60
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150




Description

The S3C72H8 single-chip CMOS microcontroller has been designed for very high performance using Samsung's state-of-the-art 4-bit product development approach, SAM47 (Samsung Arrangeable Microcontrollers). Its main features are an up-to-13-digit LCD direct drive capability, 2-channel comparator inputs and outputs, and versatile 8-counter/ timers and 16-bit frequency counter. The S3C72H8 gives you an excellent design solution for a variety of LCD-related applications, specially thermostat control application.

Up to 21 pins of the available 64-pin QFP packages of S3C72H8 can be dedicated to I/O. And six vectored interrupts provide fast response to internal and external events.

In addition, the S3C72H8's advanced CMOS technology provides for low power consumption and a wide operating  voltage range.
