Product Details

Description



Features:

Memory
• 8,192 * 4-bit RAM (excluding LCD display RAM)
• 32,768 * 8-bit ROM

39 I/O Pins
• I/O: 35 pins
• Input only: 4 pins

LCD Controller/Driver
• 56 segments and 16 common terminals
• 8 and 16 common selectable
• Internal resistor circuit for LCD bias
• All dot can be switched on/off

8-bit Basic Timer
• 4 interval timer functions
• Watchdog timer

8-bit Timer/Counter 0
• Programmable 8-bit timer
• External event counter
• Arbitrary clock frequency output
• External clock signal divider
• Serial I/O interface clock generator

16-Bit Timer/Counter 1
• Programmable 16-bit timer
• External event counter
• Arbitrary clock frequency output
• External clock signal divider

8-bit Serial I/O Interface
• 8-bit transmit/receive mode
• 8-bit receive mode
• LSB-first or MSB-first transmission selectable
• Internal or external clock source

Memory-Mapped I/O Structure
• Data memory bank 15

Watch Timer
• Time interval generation: 0.5 s, 3.9 ms at 32.768 Hz
• 4 frequency outputs to BUZ pin
• Clock source generation for LCD

Interrupts
• Four internal vectored interrupts
• Four external vectored interrupts
• Two quasi-interrupts

Bit Sequential Carrier
• Supports 16-bit serial data transfer in arbitrary format

Power-Down Modes
• Idle mode (only CPU clock stops)
• Stop mode (main system clock and CPU clock stop)
• Sub-system clock stop mode

Oscillation Sources
• Crystal, ceramic, or RC for main system clock
• Crystal oscillator for subsystem clock
• Main system clock frequency: 0.4 - 6 MHz
• Subsystem clock frequency: 32.768 kHz
• CPU clock divider circuit (by 4, 8, or 64)

Instruction Execution Times
• 0.67, 1.33, 10.7 µs at 6 MHz
• 0.95, 1.91, 15.3 µs at 4.19 MHz
• 122 µs at 32.768 kHz

Operating Temperature
• - 40   to 85

Operating Voltage Range
• 1.8 V to 5.5 V (3.0 MHz @ 1.8 V)

Package Type
• 100-pin QFP


Pinout

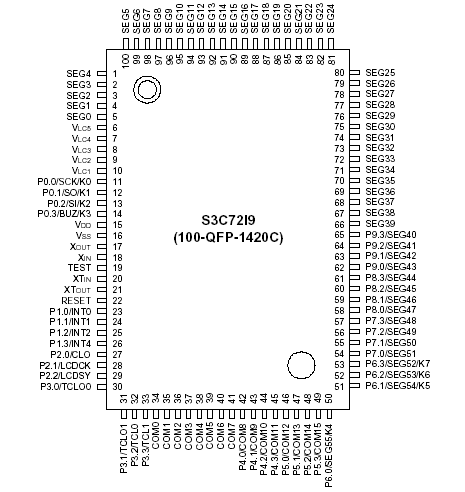

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to + 6.5
V
Input voltage
VI
 Ports 0-9
0.3 to VDD + 0.3
V
Output voltage
VO
-
-0.3 to VDD + 0.3
V
Output current high
IOH
 One I/O pin active
-15
mA
All I/O ports active
-35
Output current low
IOL
 One I/O pin active
+ 30 (Peak value)
mA
+ 15 (note)
Total for ports 0, 2-9
+ 100 (Peak value)
+ 60 (note)
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150

NOTE: The values for Output Current Low(IOL)  are calculated as Peak Value *Duty.



Description

The S3C72I9 single-chip CMOS microcontroller has been designed for high performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers).

With an up-to-896-dot LCD direct drive capability, 8-bit timer/counter 0, 16-bit timer/counter 1, and serial I/O, the S3C72I9 offers an excellent design solution for a wide variety of applications which require LCD functions.

Up to 39 pins of the 100-pin QFP package can be dedicated to I/O. Eight vectored interrupts provide fast response to internal and external events. In addition, the S3C72I9's advanced CMOS technology provides for low power consumption and a wide operating voltage range.
