Product Details

Description



Features:

Memory
  - 512 * 4-bit RAM
  - 16,384* 8-bit ROM

55 I/O Pins
  - Input only: 4 pins
  - I/O: 43 pins
  - N-channel open-drain I/O: 8 pins

Memory-Mapped I/O Structure
  - Data memory bank 15

DTMF Generator
- 16 dual-tone frequencies for tone dialing

8-bit Basic Timer
  - 4 interval timer functions

Two 8-bit Timer/Counters
  - Programmable interval timer
  - External event counter function
  - Timer/counters clock outputs to TCLO0 and TCLO1 pins External clock signal divider Serial I/O interface
      clock generator

Watch Timer
  - Time interval generation: 0.5 s, 3.9 ms at 32.768 kHz
  - 4 frequency outputs to the BUZ pin

8-bit Serial I/O Interface
  - 8-bit transmit/receive mode
  - 8-bit receive mode
  - LSB-first or MSB-first transmission selectable

Bit Sequential Carrier
  - Supports 8-bit serial data transfer in arbitrary format

Interrupts
  - 3 external interrupt vectors
  - 4 internal interrupt vectors
  - 2 quasi-interrupts

Power-Down Modes
  - Idle: Only CPU clock stops
  - Stop: System clock stops

Oscillation Sources
  - Crystal, ceramic for main system clock
  - Crystal oscillator for subsystem clock
  - Main system clock frequency: 3.579545 MHz (typical)
  - Subsystem clock frequency: 32.768 kHz (typical)
  - CPU clock divider circuit (by 4, 8, or 64)

Instruction Execution Times
  - 0.67, 1.33, 10.7 ms at 6.0 MHz
  - 1.12, 2.23, 17.88 µs at 3.579545 MHz
  - 122 µs at 32.768 kHz

Operating Temperature
  - 40  to 85

Operating Voltage Range
  - 2.0 V to 5.5 V

Package Types
  - 64 SDIP, 64 QFP

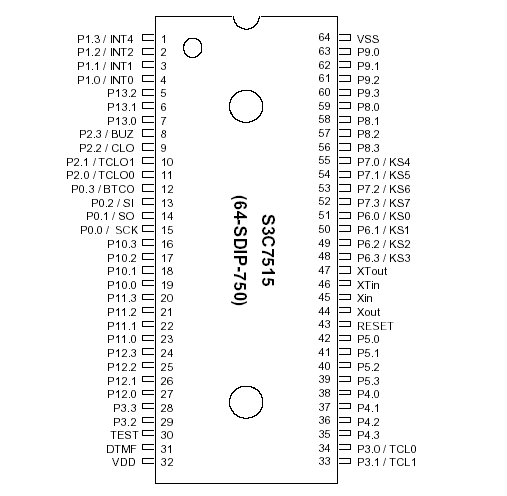

Pinout

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to 6.5
V
Input voltage
VI1
All I/O ports
0.3 to VDD + 0.3
V
Output voltage
VO
-
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O port active
15
mA
All I/O ports active
30
Output current low
IOL
 One I/O port active
+30(Peak value)
mA
+ 15*
All I/O ports, total
+ 100 (Peak value)
+ 60*
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150
NOTE: The values for Output Current Low ( IOL ) are calculated as Peak Value * Duty .


Description

The S3C7515/P7515 single-chip CMOS microcontroller has been designed for high-performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers). The S3P7515 is a microcontroller which has 16-kbyte one-time-programmable EPROM but its functions are same to S3C7515.

With its DTMF generator, 8-bit serial I/O interface, and versatile 8-bit timer/counters, the S3C7515/P7515 offers an excellent design solution for a wide variety of telecommunication applications.

Up to 55 pins of the 64-pin SDIP or QFP package can be dedicated to I/O. Seven vectored interrupts provide fast response to internal and external events. In addition, the S3C7515/P7515's advanced CMOS technology
provides for low power consumption and a wide operating voltage range.
