Product Details

Description



Features:

Memory
` 512* 4-bit RAM
` 4096* 8-bit ROM

I/O Pins
`  17 pins I/O
`  N-channel open-drain I/O: 8 pins

8-Bit Basic Timer
` Programmable interval timer
` Watchdog timer

Interval 8-Bit Timer/Counter
` Programmable interval timer
` External event counter function
` Timer/counter clock output to TCLO0 pin

Buzzer Output
` Four frequency output to BUZ pin

D/A Converter
` 8-bit D/A converter

Interrupts
` Two external interrupt vectors
` Two internal interrupt vectors
` One quasi-interrupt

Memory-Mapped I/O Structure
` Data memory bank 15

Bit Sequential Carrier
` Supports 16-bit serial data transfer in arbitrary format

Power-Down Modes
` Idle mode (only CPU clock stops)
` Stop mode (system clock stops)

Oscillation Sources
` Crystal, or ceramic for system clock
` Crystal, ceramic: 0.46.0 MHz
` CPU clock divider circuit (by 4, 8, or 64)

Instruction Execution Times
` 0.95, 1.91, and 15.3 ms at 4.19 MHz
` 0.67, 1.33, 10.7 ms at 6.0 MHz

Operating Temperature
` 40 to 85

Operating Voltage Range
` 1.8 V to 5.5 V (at 3 MHz)
` 2.7 V to 5.5 V (at 6 MHz)

Package Types
` 24-pin SOP-375
` 24-pin SDIP-300

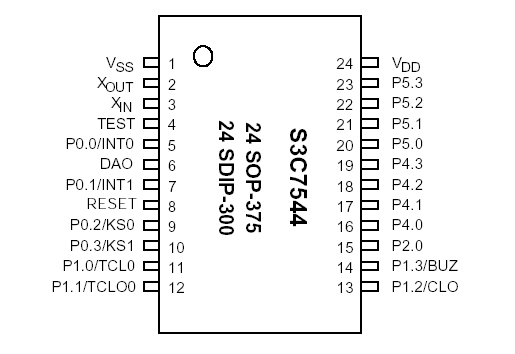

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to 6.5
V
Input voltage
VI
All I/O ports
0.3 to VDD + 0.3
V
Output voltage
VO
-
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O port active
5
mA
One I/O ports active
35
Output current low
IOL
 One I/O port active
+30(Peak)
mA
+ 15(note)
All I/O ports active
+ 100 (Peak)
+ 60(note)
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150
NOTE: The values for Output Current Low ( IOL ) are calculated as Peak Value * Duty .


Description

The S3C7544 single-chip CMOS microcontroller is designed for high-performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers).

With a versatile 8-bit timer/counter and a D/A converter, the S3C7544 offers an excellent design solution for a wide variety of telecommunication applications.

Up to 17 pins of the 24-pin SDIP package can be dedicated to I/O. Four vectored interrupts provide fast response to internal and external events. In addition, the S3C7544's advanced CMOS technology has realized substantially lower power consumption with a wide operating voltage range - all at a substantially lower cost.
