Product Details

Description



Features:

CPU
• SAM87 CPU core

Memory
• 64K-byte internal program memory (ROM)
• 192K-byte internal memory (ROM) for font data
• 272-byte internal register file (Excluding LCD RAM)
• 6144-byte data RAM

Instruction Set
• 78 instructions
• IDLE and STOP instructions added for power-down modes

Instruction Execution Time
• 1.5 s at 4 MHz fx (minimum)
• 183 s at 32,768 Hz fxt

Interrupts
• Five interrupt levels and 15 interrupt sources
• 15 vectors (15 sources have a dedicated vectorMaddress)
• Fast interrupt processing feature (for one selected interrupt level)

I/O Ports
• Four 8-bit I/O ports (P0P3) for a total of 32-bit programmable pins
• Eight input pins for external interrupts
• One output only pin for BUZ

Watch Timer
• Interval time: 3.91 ms, 1s at 32,768 Hz
• Four frequency outputs to BUZ pin and BUZ pin
• Clock source generation for LCD

LCD Controller/Driver
• 65 segments and 18 common terminals
• Internal resistor circuit for LCD bias
• Voltage doubler
• All dot can be switched on/off

Timers and Timer/Counters
• One programmable 8-bit basic timer (BT) for oscillation stabilization control or watchdog timer (software
   reset) function
• One 8-bit timer/counter (Timer 0) with three operating modes; Interval, Capture and PWM
• One 16-bit timer/counter (Timer 1) with two 8-bit timer/counter modes; Interval

Power-Down Modes
• Idle mode (CPU clock stops)
• Stop mode (main oscillation and CPU clock stops)

Operating Temperature Range
• 40 to + 85

Operating Voltage Range
• 2.2 V to 4.5 V at 1 MHz fx
• 2.7 V to 4.5 V at 4 MHz fx

Package Type
• 128-pin QFP

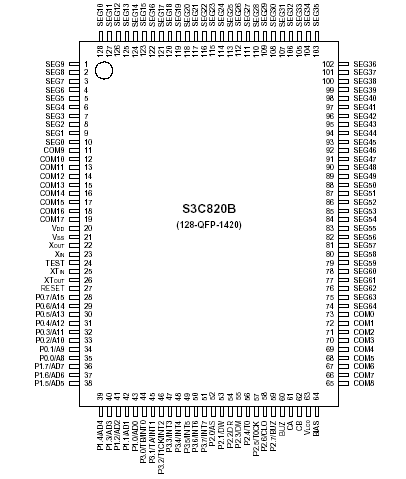

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +5.5
V
Input voltage
VIN
Ports 0, 1, 2, and 3
0.3 to VDD + 0.3
V
Output voltage
VO
All output pins
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O pin active
-18
mA
All I/O pins active
-60
Output current low
IOL
One I/O pin active
+ 30
mA
Total pin current for ports 03
+ 100
Operating temperature
TA
-
40 to + 85
Storage temperature
TSTG
-
65 to + 150




Description

The S3C820B single-chip CMOS microcontroller is fabricated using a highly advanced CMOS process and is based on Samsung's newest CPU architecture.

The S3C820B is the microcontroller which has 64K-byte mask-programmable ROM and 192K-byte mask ROM for font data.

Using a proven modular design approach, Samsung engineers developed the S3C820B by integrating the following peripheral modules with the powerful SAM87 core:

  - Four programmable I/O ports, excluding one BUZ pin, for a total of 32 pins.
  - Eight bit-programmable pins for external interrupts.
  - One 8-bit basic timer for oscillation stabilization and watchdog functions (system reset).
  - One 8-bit timer/counter and one 16-bit timer/counter with selectable operating modes.
  - Watch timer for real time.

The S3C820B is a versatile microcontroller for data bank or dictionary. It is currently available in a 128- pin QFP package.
