Product Details

Description



Features:

CPU
• SAM88RCRI CPU core
Memory
• 64K *8 bits program memory(ROM)
• 192K *8 bits data memory(ROM)
• 592* 8 bits data memory(RAM) (Excluding LCD data memory)

Instruction Set
• 41 instructions
• Idle and Stop instructions added for power-down modes

32 I/O Pins
• I/O: 8 pins
• I/O: 24 pins(Sharing with segment drive outputs)

Interrupts
• 15 interrupt source and 1 vector
• One interrupt level

8-Bit Basic Timer
• Watchdog timer function
• 3 kinds of clock source

One 8-Bit Timer/Counter 0
• Programmable interval timer
• External event counter function
• PWM and Capture function

One 16-bit Timer/Counter 1
• One 16-bit Timer/Counter mode
• Two 8-bit Timer/Counters A/B mode

Watch Timer
• Interval time: 3.91mS, 0.25S, 0.5S, and 1S at 32.768 kHz
• 2/4/8/16 kHz Selectable buzzer output

LCD Controller/Driver
• 64 segments and 16 common terminals
• 8, 12, and 16 common selectable
• Internal resistor circuit for LCD bias

Two PWM Modules
• 5/6/7/8-bits PWM Selectable
• Direct speaker drive
• 2-bit extendable

Voltage Level Detector
• Programmable low voltage detector
• Two criteria voltage(2.7 V, 4.0 V)

Two Power-Down Modes
• Idle: only CPU clock stops
• Stop: selected system clock and CPU clock stop

Oscillation Sources
• Crystal, ceramic, or RC for main clock
• Main clock frequency: 0.4 MHz - 8MHz
• 32.768 kHz crystal oscillation circuit for sub clock

Instruction Execution Times
• 500nS at 8 MHz fx(minimum)

Operating Voltage Range
• 2.4 V to 5.5 V at 0.4 - 3MHz
• 2.7 V to 5.5 V at 0.4 - 4MHz
• 4.5 V to 5.5 V at 0.4 - 8MHz

Operating Temperature Range
• -40 to +85

Package Type
• 100-pin QFP Package


Application

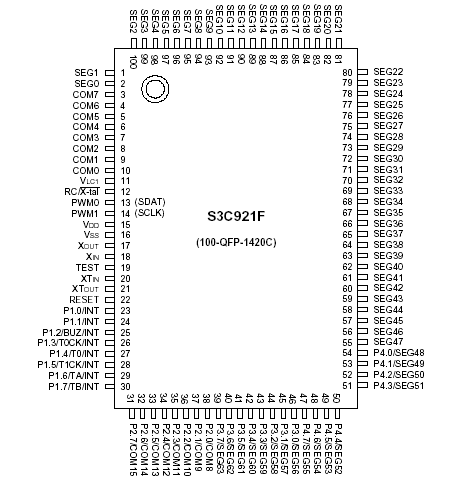

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +6.5
V
Input voltage
VIN
Ports 1, 2, 3 and 4
0.3 to VDD + 0.3
V
Output voltage
VO
All output ports
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O pin active
-18
mA
All I/O pins active
60
Output current low
IOL
                     One I/O pin active
+30(Peak Value)
mA
            Total pin current for ports 1-4    +100(Peak Value)
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150




Description

The S3C921F can be used for dedicated control functions in a variety of applications, and is especially designed for application with voice synthesizer or etc.

The S3C921F/P921F single-chip 8-bit microcontroller is fabricated using an advanced CMOS process. It is built around the powerful SAM88RCRI CPU core.

Stop and Idle power-down modes were implemented to reduce power consumption. To increase on-chip register space, the size of the internal register file was logically expanded. The S3C921F/P921F has 64 Kbytes of program ROM and 192 Kbytes of data ROM on-chip (S3C921F), and 720 bytes of RAM including 16 bytes of working register and 128 bytes of LCD display RAM.

Using the SAM88RCRI design approach, the following peripherals were integrated with the S3C921F core:

  - Four configurable I/O ports including ports shared with segment/common drive outputs
  - 8-bit programmable pins for external interrupts
  - One 8-bit basic timer for oscillation stabilization and watch-dog functions
  - One 8-bit and one 16-bit timer/counter with selectable operating modes
  - Watch timer for real time
  - Two PWM modules for direct speaker drive
