S3C9228

Features:

CPU
`  SAM88RCRI CPU core

Memory
`  8192 * 8 bits program memory (ROM)
`  264 *8 bits data memory (RAM) (Including LCD data memory)

Instruction Set
`  41 instructions
`  Idle and Stop instructions added for power-down modes

36 I/O Pins
`  I/O: 34 pins (44-pin QFP, 42-pin SDIP)
`  Output only: 2 pins (44-pin QFP)
`  14 interrupt source and 1 vector
`  One interrupt level

8-Bit Basic Timer
`  Watchdog timer function
`  3 kinds of clock source

Two 8-Bit Timer/Counters
`  The programmable 8-bit timer/counters
`  External event counter function
` Configurable as one 16-bit timer/counters

Watch Timer
`  Interval time: 3.91mS, 0.25S, 0.5S, and 1S at 32.768 kHz
`  0.5/1/2/4 kHz Selectable buzzer output
`  Clock source generation for LCD

LCD Controller/Driver
`  16 segments and 8 common terminals
`  3, 4, and 8 common selectable
`  Internal resistor circuit for LCD bias

8-bit Serial I/O Interface
`  8-bit transmit/receive mode
`  8-bit receive mode
`  LSB-first or MSB-first transmission selectable
`  Internal or external clock source

A/D Converter
`  10-bit converter resolution
`  50us conversion speed at 1MHz f_ADC clock
`  4-channel

Two Power-Down Modes
`  Idle: only CPU clock stops
`  Stop: system clock and CPU clock stop

Oscillation Sources
`  Crystal, ceramic, or RC for main clock
`  Main clock frequency: 0.4 MHz - 8MHz
`  32.768 kHz crystal oscillation circuit for sub clock

Instruction Execution Times
`  500nS at 8MHz fx(minimum)

Operating Voltage Range
`  2.0 V to 5.5 V at 0.4 - 4.2MHz
`  2.7 V to 5.5 V at 0.4 - 8MHz

Operating Temperature Range
`  -25 to +85

Package Type
`  44-pin QFP, 42-pin SDIP

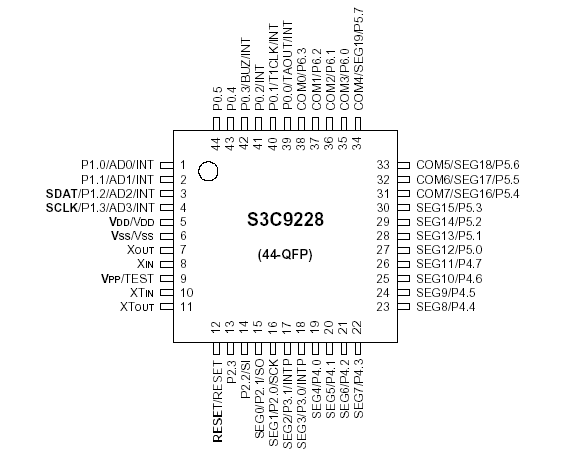

Pinout




Specifications

Parameter	Symbol	Conditions	Rating	Unit
Supply voltage	VDD	-	0.3 to +6.5	V
Input voltage	VIN	Ports 06	0.3 to VDD + 0.3	V
Output voltage	VO	-	-0.3 to VDD + 0.3	V
Output current high	IOH	One I/O pin active	-15	mA
		All I/O pins active	60
Output current low	IOL	One I/O pin active	+ 30	mA
		Total pin current for ports	+ 100
Operating temperature	TA	-	25 to + 85
Storage temperature	TSTG	-	65 to + 150

Description

The S3C9228 can be used for dedicated control functions in a variety of applications, and is especially designed for application with FRS or etc.

The S3C9228/P9228 single-chip 8-bit microcontroller is fabricated using an advanced CMOS process. It is built around the powerful SAM88RCRI CPU core.

Stop and Idle power-down modes were implemented to reduce power consumption. To increase on-chip register space, the size of the internal register file was logically expanded. The S3C9228/P9228 has 8K-byte of program ROM, and 264-byte of RAM (including 16-byte of working register and 20-byte LCD display RAM).

S3C9228 Using the SAM88RCRI design approach, the following peripherals were integrated with the SAM88RCRI core:

  - 7 configurable I/O ports including ports shared with segment/common drive outputs
  - 10-bit programmable pins for external interrupts
  - One 8-bit basic timer for oscillation stabilization and watch-dog functions
  - Two 8-bit timer/counters with selectable operating modes
  - Watch timer for real time
  - 4 channel A/D converter
  - 8-bit serial I/O interface
