S3C9688

Features: CPU` SAM88RCRI CPU coreMemory` 8 K byte internal program memory (ROM)` 208 byte RAMInstruction Set` 41 instructions` IDLE and STOP instructions added for power-down modesInstruction Execution Time` 0.66 ms at 6 MHz fOSCInterrupts` 29 interrupt sources with one vector, each source has its...

product image

S3C9688 Picture
See larger image
SeekIC No. : 004482210 Detail

S3C9688: Features: CPU` SAM88RCRI CPU coreMemory` 8 K byte internal program memory (ROM)` 208 byte RAMInstruction Set` 41 instructions` IDLE and STOP instructions added for power-down modesInstruction Execut...

S3C9688 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S3C9688
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
` SAM88RCRI CPU core

Memory
` 8 K byte internal program memory (ROM)
` 208 byte RAM

Instruction Set
` 41 instructions
` IDLE and STOP instructions added for power-down modes

Instruction Execution Time
` 0.66 ms at 6 MHz fOSC

Interrupts
` 29 interrupt sources with one vector, each source has its pending bit
` One level, one vector interrupt structure

Oscillation Circuit
` 6 MHz crystal/ceramic oscillator
` External clock source (6 MHz)
` Embedded oscillation capacitor (XI, XO, 33pF)

General I/O
` Bit programmable five I/O ports (34 pins total)
    - (D+/PS2, D-/PS2 Included)
` One 8-bit basic timer for watchdog function and programmable oscillation stabilization interval generation function
` One 8-bit timer/counter with Compare/Overflow

USB Serial Bus
` Compatible to USB low speed (1.5 Mbps) device 2.0 specification.
` 1 Control endpoint and 2 Interrupt endpoint
` Serial bus interface engine (SIE)

    - Packet decoding/generation
    - CRC generation and checking
    - NRZI encoding/decoding and bit-stuffing
` 8 bytes each receive/transmit USB buffer

Low Voltage Reset
` Low voltage detect for RESET
` Power on Reset

Operating Temperature Range
` 40   to + 85

Operating Voltage Range
` 4.0 V to 5.25 V

Package Types
` 42-pin SDIP
` 44-pin QFP




Pinout

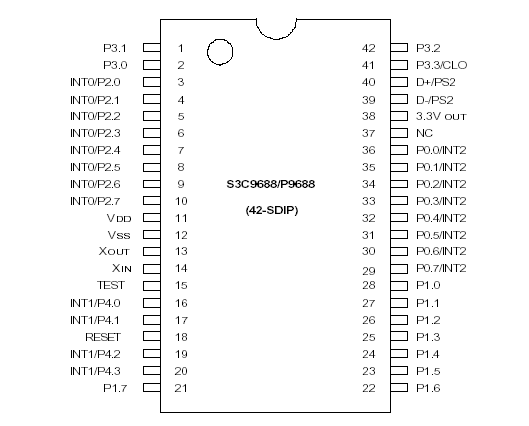

Connection Diagram


Description

The S3C9688/P9688 single-chip 8-bit microcontroller is fabricated using an advanced CMOS process. It is built around the powerful SAM88RCRI CPU core.

Stop and Idle power-down modes were implemented to reduce power consumption. To increase on-chip register space, the size of the internal register file was logically expanded. The S3C9688 has 8 K bytes of program memory on-chip.

Using the SAM88RCRI design approach, the following peripherals were integrated with the SAM88RCRI core, S3C9688 specifications:

  - Five configurable I/O ports (32 pins)
  - 20 bit-programmable pins for external interrupts
  - 8-bit timer/counter with three operating modes
  - Low speed USB function

The S3C9688/P9688 is a versatile microcontroller that can be used in a wide range of low speed USB support general purpose applications. It is especially suitable for use as a keyboard controller and is available in a 42-pin SDIP and a 44-pin QFP package.
