Features:

CPU
· 8-Bit RISC architecture

Memory
· ROM: 4 Kword (8 K-byte)
· RAM: 3072 (1024+2048) byte
             1024 (X-memory) byte
             2048 (Y-memory) byte

Stack
· size: maximum 16 (word)-level

26 I/O Pins
· I/O: 26 pins, including 8 S/W open drain pins

8-Bit Basic Timer
· Programmable interval timer
· 8 kinds of clock source

Watchdog Timer
· System reset when 11-bit counter overflows

16-Bit Timer/Counter
· Programmable interval timer
· Two 8-bit timer counter mode and one 16-bit timer counter mode, selectable by S/W

Watch Timer
· Real time clock or interval time measurement
· Four frequency outputs for buzzer sound

8-Bit Serial I/O Interface
· 8-bit transmit/receive mode
· 8-bit receive mode
· LSB first or MSB first transmission selectable
· Internal and external clock source

16-Bit Serial I/O Interface
· 16-bit transmit/receive mode
· External clock source

Coprocessor
· MAC 816
· 8 x 16, 16 x 16 Multiply and Accumulation
· Arithmetic operation

Two Power-Down Modes
· Idle mode: only CPU clock stop
· Stop mode: selected system clock and CPU clock stop

Oscillation Sources
· Crystal and Ceramic (0.4-20MHz), RC Oscillation
· Programmable oscillation source

Instruction Execution Times
· 50ns at 20MHz for 1 cycle instruction
· 100ns at 20MHz for 2 cycle instruction



Pinout

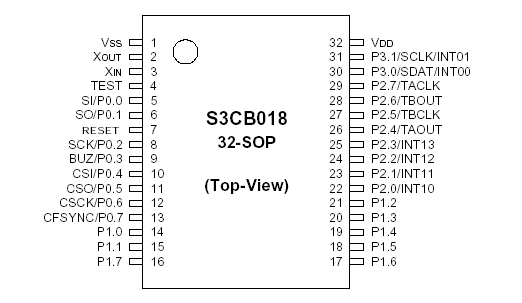

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to + 6.0
V
Input voltage
VI
-
0.3 to VDD + 0.3
Output voltage
VO
-
-0.3 to VDD + 0.3
Output current high
IOH
 One I/O pin active
-18
mA
All I/O ports active
-60
Output current low
IOL
 One I/O pin active
+ 30
Total pin current for ports 1, 2, 3
+ 100
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150





Description

The S3CB018/FB018 single-chip CMOS microcontroller is designed for high performance using Samsung' s newest 8-bit CPU core, CalmRISC.

CalmRISC is an 8-bit low power RISC microcontroller. S3CB018's basic architecture follows Harvard style, that is, it has separate program memory and data memory. Both instruction and data can be fetched simultaneously without causing a stall, using separate paths for memory access. Represented below is the top block diagram of the CalmRISC microcontroller.
