Product Details

Description



Features:

CPU
` 8-bit CalmRISC

Coprocessor
` MAC 816
` 8* 16, 16* 16 multiply and accumulation
` Arithmetic operation

Memory
` ROM: 16K-word
` RAM: 3K-byte
             2048 (X-memory)
             1024 (Y-memory)

I/O Pins
` 11 I/O: not include COM/SEG
` 35 I/O: include COM/SEG

Power-Down
` Idle mode: only CPU clock stops
` Stop mode: main system oscillator stops
` Sub-system clock stop mode

ROM Option
` Basic timer counter clock source selection reset value
` Watchdog timer enable/disable selection

8-Bit Basic Timer
` Programmable interval timer
` 8 kinds of clock source

Watchdog Timer
` System reset

Watch Timer
` Real time clock or interval time measurement
` Buzzer function (0.5/1/2/4 kHz at 4.19 MHz OSC)

Timer/Counters
` One 8-bit timer with PWM/Capture
` One 16-bit general-purpose timer/counter

LCD Controller/Driver
` 56 SEG* 16 COM terminals
` 8, 12 and 16 COM selectable
` 16-level contrast control
` Key strobe output function

Battery Level Detector
` 2.4, 2.7, 3.0, 3.3, 4.0, 4.5 V detectable
` Internal level and/or external level selectable

8-Bit Serial I/O Interface
` 8-bit transmit/receive mode
` 8-bit receive mode
` LSB-first or MSB-first transmission selectable

A/D Converter
` Sigma delta ADC
` Linear 14-bit data (16-bit format)
` 256X over sampling
` Operation voltage: VDD = 3.0 V5.5 V

D/A Converter
` 8-bit resolution
` Regulated output voltage
` Operation voltage: VDD = 2.4 V5.5 V

D/A Converter
` 8-bit resolution
` Regulated output voltage
` Operation voltage: VDD = 2.4 V5.5 V

Oscillation Sources
` Crystal, ceramic, RC for main system clock
` Crystal or external oscillator for subsystem clock
` Main system clock frequency: Max 8.2 MHz
` Subsystem clock frequency: 32.768 kHz

Operating Voltage
` 2.2 V to 5.5 V

Operating Temperature Range
` 25 to 85

Package Type
` 100-QFP-1420C, 100-TQFP-1414

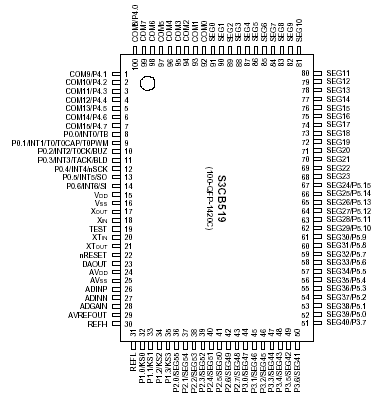

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +6.5
V
Input voltage
VI
                        -
0.3 to VDD + 0.3
V
Output voltage
VO
                      -
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O pin active
-18
mA
All I/O pins active
-60
Output current low
IOL
One I/O pin active
+30
mA
Total pin current for port
+ 100
Operating temperature
TA
-
25 to + 85
Storage temperature
TSTG
-
65 to + 150




Description

The S3CB519 single-chip CMOS microcontroller is designed for high performance using Samsung's new 8-bit CPU core, CalmRISC.

CalmRISC is an 8-bit low power RISC microcontroller. S3CB519's basic architecture follows Harvard style, that is, it has separate program memory and data memory. Both instruction and data can be fetched simultaneously without causing a stall, using separate paths for memory access. Represented below is the top block diagram of the CalmRISC microcontroller.
