Product Details

Description



Features:

CPU
` SAM88RCRI CPU core

Memory
` 208-byte general purpose register (RAM)
` 4/8-Kbyte internal mask program memory
` 8-Kbyte internal multi time program memory (S3F9488)

Oscillation Sources
` Crystal, Ceramic, RC
` CPU clock divider (1/1, 1/2, 1/8, 1/16)

Instruction Set
` 41 instructions
` IDLE and STOP instructions added for powerdown modes

Instruction Execution Time
` 500 ns at 8-MHz fOSC (minimum)

Interrupts
` 10 interrupt sources with one vector / one level

I/O Ports
` Total 38 bit-programmable pins (44QFP)
    Total 36 bit-programmable pins (42SDIP)
    Total 26 bit-programmable pins (32SDIP/32SOP)

Basic Timer
` One programmable 8-bit basic timer (BT) for
    Oscillation stabilization control `

8bit Timers A/B
` One 8-bit timer/counter (Timer A) with three operating modes; Interval mode, capture mode and PWM mode.
` One 8-bit timer/counter (Timer B) Carrier frequency (or PWM) generator.

Watch Timer
` Real-time and interval time measurement.
` Four frequency output to BUZ pin.
` Clock generation for LCD.

LCD Controller/Driver (Optional)
` 8 COM *19 SEG (MAX 19 digit)
   4 COM * 19 SEG (MAX 8 digit)

A/D Converter
` Nine analog input channels
` 12.5us conversion speed at 4MHz fADC clock.

Asynchronous UART
` Programmable baud rate generator
` Support serial data transmit/receive operations with 8-bit, 9-bit UART

Watchdog Timer
` Two oscillation sources selection (by Smart option)
` Safety work for noise interference

Low Voltage Reset (LVR)
` Low Voltage Check to make system reset
` VLVR = 2.6V/3.3V/3.9V

Voltage Detector for Indication
` Voltage Detector to indicate specific voltage.
` S/W control (2.4V, 2.7V, 3.3V, 3.9V)

Operating Temperature Range
` 25 to + 85

Operating Voltage Range
` 2.2V to 5.5 V at 4 MHz fOSC
` 2.7V to 5.5 V at 8 MHz fOSC

Package Type
` 32-pin SDIP, 32-pin SOP
` 42-pin SDIP, 44-pin QFP

Smart Option
` Low Voltage Reset(LVR) level and enable/disable are at your hardwired option.
` I/O Port (P0.0- P0.2/P3.3-P3.6) mode selection at Reset.
` Watchdog Timer oscillator selection.

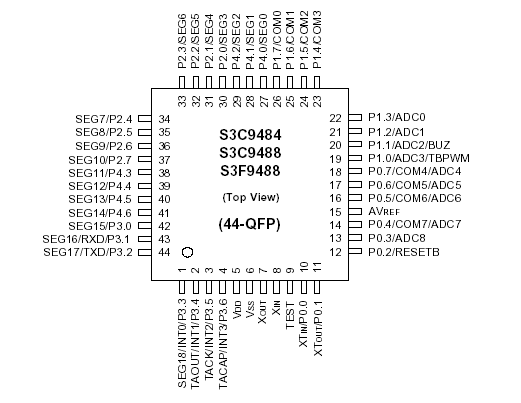

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD

0.3 to +6.5
V
Input voltage
VI

0.3 to VDD + 0.3
Output voltage
VO

-0.3 to VDD + 0.3
Output current high
IOH
One I/O pin active
-18
mA
All I/O pins active
-60
Output current low
IOL
One I/O pin active
+30
Total pin current for port
+ 100
Operating temperature
TA

25 to + 85
Storage temperature
TSTG

65 to + 150




Description

The S3C9484/C9488/S3F9488 single-chip CMOS microcontrollers are fabricated using the highly advanced CMOS process technology based on Samsung's latest CPU architecture.

The S3C9484 is a microcontroller with a 4K-byte mask-programmable ROM embedded.
The S3C9488 is a microcontroller with a 8K-byte mask-programmable ROM embedded.
The S3F9488 is a microcontroller with a 8K-byte multi time programmable ROM embedded.

Using a proven modular design approach, Samsung engineers have successfully developed the S3C9484/C9488/S3F9488 by integrating the following peripheral modules with the powerful SAM88 RCRI core:

  - Five configurable I/O ports (38 pins) with 8-pin LED direct drive and LCD display
  - Ten interrupt sources with one vector and one interrupt level
  - One watchdog timer function with two source clock (Basic Timer overflow and internal RC oscillator)
  - One 8-bit basic timer for oscillation stabilization
  - Watch timer for real time clock
  - Two 8-bit timer/counter with time interval, PWM, and Capture mode
  - Analog to digital converter with 9 input channels and 10-bit resolution
  - One asynchronous UART

The S3C9484/C9488/S3F9488 microcontroller is ideal for use in a wide range of home applications requiring simple timer/counter, ADC, LED or LCD display with ADC application, etc. The S3F9488 is currently available in 32-pin SOP/SDIP, 42-pin SDIP and 44-pin QFP package.
