Product Details

Description



Features:

Architecture
  SAM47 4-bit CPU core

Memory
  Data Memory: 512 * 4 bits
  Program Memory: 8196 * 8 bits (Including LCD display RAM)

Memory-Mapped I/O Structure
  Data memory bank 15

Interrupts
  Three internal vectored interrupts
  Three external vectored interrupts
  Two quasi-interrupts

8-Bit Timer/Counter (T0)
  Programmable 8-bit timer
  External event counter
  Arbitrary clock frequency output
  External clock signal divider

16-Bit Frequency Counter (FC)
  a 16-bit binary up-counter
  External event counter
  Gate function control

Watch-Dog TIMER and Basic Timer
  8-bit counter + 3-bit counter
  Overflow signal of 8-bit counter makes a basic timer interrupt. And control the oscillation
      warmup time
  Overflow signal of 3-bit counter makes a system reset

Watch Timer
  Real-time and interval time measurement
  Four frequency outputs to buzzer sound
   Clock source generation for LCD

LCD Controller/Driver
  26 segment and 4 common terminals
  Maximum 13-digit LCD direct drive capability
  Display modes: Static, 1/2, 1/3, 1/4 duty
  Voltage regulator and booster (1/3 bias: 1, 2, or 3V, 1/2 bias: 1.5, 3V)

Analog Comparator
  2 Ch Comparator (Each CnP, CnN, CnOUT pins)

Bit Sequential Carrier
  Support 16-bit serial data transfer in arbitrary format

I/O Ports
  21 pins for standard I/O
  26 pins for LCD segment output
  4 pins for LCD common output
  Two input pins for external interrupts

Oscillation Sources
  Crystal, ceramic, or RC for main system clock
  Crystal or external oscillator for subsystem clock
  Main system clock frequency: 4.19 MHz (typical)
  Subsystem clock frequency: 32.768 kHz
  CPU clock divider circuit (by 4, 8, or 64 main, and by 4 for sub clock)

Power Down Mode
  Idle mode (only CPU clock stops)
  Stop mode (main or sub-system oscillation stops)

Voltage Level Detector
  VDD level detection circuit (2.2, 2.4, 3, or 4.0V)
  External pin level detect mode

Operating Voltage Range
  1.8V to 5.5V at 3 MHz
  2.0V to 5.5V at 4.19 MHz

Package Type
64-pin QFP



Pinout

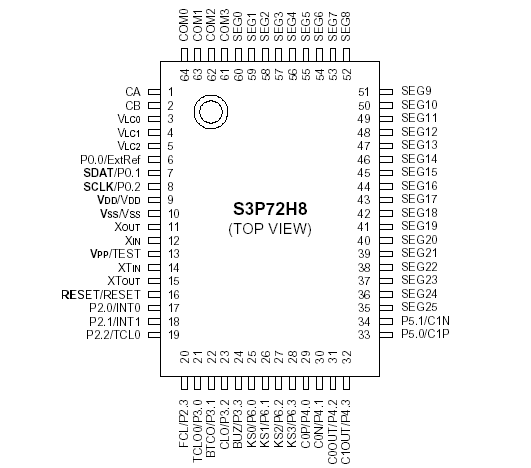

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to + 6.5
V
Input voltage
VIN
 -
0.3 to VDD + 0.3
Output voltage
VO
All I/O ports
-0.3 to VDD + 0.3
Output current high
IOH
 One I/O pin active
-7
mA
All I/O ports active
-40
Output current low
IOL
 One I/O pin active
+ 15
mA
Total pin circuit
+ 60
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150




Description

The S3P72H8 single-chip CMOS microcontroller has been designed for very high performance using Samsung's state-of-the-art 4-bit product development approach, SAM47 (Samsung Arrangeable Microcontrollers). S3P72H8's main features are an up-to-13-digit LCD direct drive capability, 2-channel comparator inputs and outputs, and versatile 8-counter/ timers and 16-bit frequency counter. The S3P72H8 gives you an excellent design solution for a variety of LCD-related applications, specially thermostat control application.

Up to 21 pins of the available 64-pin QFP packages can be dedicated to I/O. And six vectored interrupts of S3P72H8 provide fast response to internal and external events.

In addition, the S3P72H8's advanced CMOS technology provides for low power consumption and a wide operating  voltage range.
