S3P72K8

Features: Memory - 8 K *8-bit RAM - 1,024 * 4-bit ROM27 I/O Pins - Input only: 4 pins - I/O: 15 pins - Output: maximum 8 pins for 1-bit level output (sharing with segment driver outputs)Comparator - Two channel mode: internal reference (4-bit resolution) - One channel mode: external referenceLCD C...

product image

S3P72K8 Picture
See larger image
SeekIC No. : 004482257 Detail

S3P72K8: Features: Memory - 8 K *8-bit RAM - 1,024 * 4-bit ROM27 I/O Pins - Input only: 4 pins - I/O: 15 pins - Output: maximum 8 pins for 1-bit level output (sharing with segment driver outputs)Comparator -...

S3P72K8 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S3P72K8
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Memory
  - 8 K *8-bit RAM
  - 1,024 * 4-bit ROM

27 I/O Pins
  - Input only: 4 pins
  - I/O: 15 pins
  - Output: maximum 8 pins for 1-bit level output (sharing with segment driver outputs)

Comparator
  - Two channel mode: internal reference (4-bit resolution)
  - One channel mode: external reference

LCD Controller/Driver
  - 40 segments and 8 common terminals
  - 3, 4 and 8 common selectable
  - Internal resistor circuit for LCD bias
  - All dot can be switched on/off

8-Bit Basic Timer
  - 4 interval timer functions
  - Watchdog timer

8-Bit Timer/Counter
  - Programmable 8-bit timer
  - External event counter
  - Arbitrary clock frequency output
  - External clock signal divider
  - Serial I/O interface clock generator

8-Bit Serial I/O Interface
  - 8-bit transmit/receive mode
  - 8-bit receive only mode
  - LSB-first or MSB-first transmission selectable
  - Internal or external clock source

Bit Sequential Carrier
  - Support 16-bit serial data transfer in arbitrary format

Watch Timer
  - Timer interval generation: 0.5 s, 3.9 ms at 32,768 Hz
  - Four frequency outputs to BUZ pin
  - Clock source generation for LCD

Interrupts
  - Three internal vectored interrupts: INTB, INTT0, INTS
  - Four external vectored interrupts: INT0, INT1, INT4, INTK
  - Two quasi-interrupts: INT2, INTW

Memory-Mapped I/O Structure
  - Data memory bank 15

Two Power-Down Modes
  - Idle mode (only CPU clock stops)
  - Stop mode (main system oscillation stops)
  - Subsystem clock stop mode

Oscillation Sources
  - Crystal, ceramic, or External RC for system clock
  - Main system clock frequency: 0.4 MHz6 MHz
  - Subsystem clock frequency: 32,768 kHz
  - CPU clock divider circuit (by 4, 8, or 64)

Instruction Execution Times
  - 0.67 us at 6 MHz (minimum)
  - 0.95 s at 4.19 MHz (minimum)
  - 122 s at 32,768 kHz (minimum)

Operating Temperature
- 40    to 85

Operating Voltage Range
- 2.0 V to 5.5 V

Package Type
- 80-pin QFP


Pinout

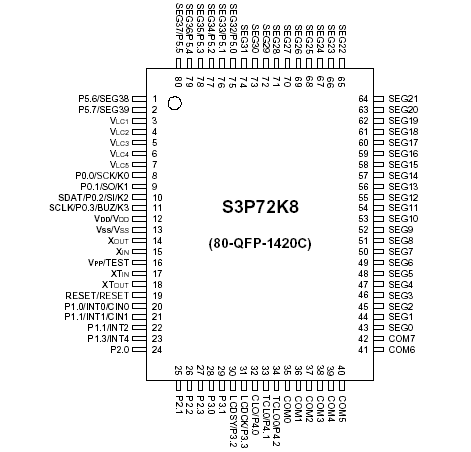

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +6.5
V
Input voltage
VI1
All I/O pins active
0.3 to VDD + 0.3
V
Output voltage
VO
-
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O pin active
-15
mA
All I/O pins active
35
Output current low
IOL
One I/O pin active
+ 30 (Peak value)
mA
+ 15 (note)
All I/O port, total
+ 100 (Peak value)
+ 60 (note)
Operating temperature
TA
-
40 to + 85
Storage temperature
TSTG
-
65 to + 150

NOTE: The values for Output Current Low ( IOL ) are calculated as Peak Value *Duty .


Description

The S3P72K8 singl-chip CMOS microcontroller has been designed for high performance using Samsung's newest 4-bit CPU core, SAM48 (Samsung Arrageable Microcontrollers). With a two-channel comparator, up-to- 320-dot LCD direct drive capability, 8-bit timer/counter, watchdog timer and serial I/O, the S3P72K8 offers an excellent design solution for a wide variety of applications which require LCD functions.

Up to 27 pins of the 80-pin QFP package can be dedicated to I/O. Seven vectored interrupts provide fast response to internal and external events. In addition, the S3P72K8's advanced CMOS technology provides for low power consumption and a wide operating voltage range.
