Product Details

Description



Features:

Memory
• 256* 4-bit RAM
• 4,096*8-bit ROM

35 I/O Pins
• I/O: 31 pins including 8 LED direct drive pins (S3C7414/C7434) 18 pins including 8 LED direct drive pins (S3C7424)
• Input only: 4 pins

A/D Converter
• 6-channel with 8-bit resolution
• 22.89 µs conversion speed at 4.19 MHz

Basic Timer
• One 8-bit basic timer
• Watchdog timer functions
• Four interval clock selection

Timer/Counters
• Two 8-bit timer/counter (TC0, TC1)
• Programmable 8-bit timer
• External event counter
• Arbitrary clock frequency output
• PWM output mode (TC1)

Watch Timer
• One watch timer 8-bit
• Time interval generation: 0.5 s, 3.9 ms at 4.19 MHz
• Four frequency outputs to BUZ pin

8-bit Serial I/O Interface
• 8-bit transmit/receive mode
• 8-bit receive mode
• LSB-first or MSB-first transmission selectable
• Internal or external clock source

Built-in reset circuit (S3C7434 only)
• Built-in power-on reset circuit

Interrupts
• Five internal vectored interrupts (INTB, INTT0, INTT1, INTS, INTAD)
• Three external vectored interrupts (INT0, INT1, INT4)
• Two quasi-interrupts (INT2, INTW)

Bit Sequential Carrier
• Supports 16-bit serial data transfer in arbitrary format

Memory-Mapped I/O Structure
• Data memory bank 15

Two Power-Down Modes
• Idle mode (only CPU clock stops)
• Stop mode (system oscillation stops)

Oscillation Sources
• Crystal, Ceramic, or RC for system clock
• Crystal, Ceramic: 0.46.0 MHz
• RC: 4 MHz (typ)
• CPU clock divider circuit (by 4, 8, or 64)

Instruction Execution Times
• 0.95, 1.91, 15.3 µs at 4.19 MHz
• 0.67, 1.33, 10.7 µs at 6.0 MHz

Operating Temperature
• 40 to 85

Operating Voltage Range
• 1.8 V to 5.5 V (S3C7414/C7424)
• 2.5 V to 5.5 V (S3C7434)

Package Type
• 42-pin SDIP, 44-pin QFP (S3C7414/C7434) 30-pin SDIP, 28-pin SOP (S3C7424)

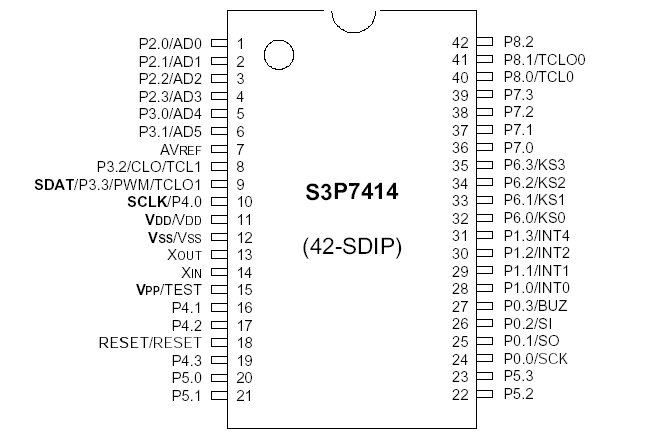

Pinout

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +6.5
V
Input voltage
VIN
All I/O ports
0.3 to VDD + 0.3
V
Output voltage
VO
-
-0.3 to VDD + 0.3
V
Output current high
IOH
One pin
15
mA
All output pins
35
Output current low
IOL
One pin
peak value (note)
+30
mA
rms value
+ 15
All pins
peak value (note)
+ 100
rms value
+ 60
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150
NOTE: The values for Output Current Low ( IOL ) are calculated as Peak Value * Duty .


Description

The S3P7414 single-chip CMOS microcontroller has been designed for very high performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontroller).

With an A/D converter, LED direct drive pins, an 8-bit serial I/O interface, and an 8-bit timer/counter, the S3P7414 offers you an excellent design solution for a wide variety of home appliance applications - electric fans, cookers, boilers, and air conditioners, for example.

Up to 35 pins of the 42-pin SDIP or 44-pin QFP package can be dedicated to I/O. Seven vectored interrupts of S3P7414 provide fast response to internal and external events.

In addition, the S3P7414's advanced CMOS technology provides for low power consumption and a wide operating voltage range.
