Product Details

Description



Features:

CPU
• SAM87RI CPU core

Memory
• 4-Kbyte internal program memory (ROM)
• 208-byte internal register file
• 8-Kbyte external program memory
• 8-Kbyte external data memory

Instruction Set
• 41 instructions
• IDLE and STOP instructions added for powerdown modes

Instruction Execution Time
• 1.5 ms at 4 MHz fOSC

Interrupts
• 14 interrupt sources with one vector, Each source has its pending bit
• One level, one vector interrupt structure

Oscillation Circuit Options
• 4 MHz RC oscillator with on chip capacitor for S3C9004/P9004 ( 10% RC accuracy at VDD ± 5% and
   Ta = 0 70, using 1% external precision resistor)
• RC oscillator for S3C9004/P9004
• Crystal/ceramic oscillator for S3C9014/P9014

General I/O
• Five ports (32 pins total)
• Three bit-programmable ports (20 pins total)
• Two bit-programmable ports with external interrupts (12 pins total)

Timer/Counter
• One 8-bit basic timer for watchdog function and programmable oscillation stabilization interval generation function
• One 8-bit timer/counter with PWM mode

Operating Temperature Range
• 40 to + 85

Operating Voltage Range
• 4.5 V to 5.5 V for S3C9004/P9004
• 2.7 V to 5.5 V for S3C9014/P9014

Package Types
• 40-pin DIP


Pinout

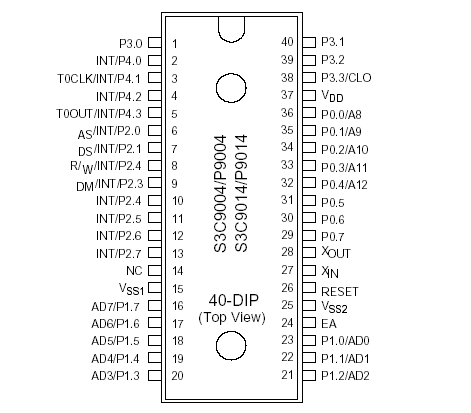

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +6.5
V
Input voltage
VIN
 All input ports
0.3 to VDD + 0.3
V
Output voltage
VO
All output ports
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O pin active
-18
mA
All I/O pins active
60
Output current low
IOL
One I/O pin active
+ 25
mA
Total pin current for ports 3
+ 100
Total pin current for ports 0, 1, 2, 4
+ 100
Operating temperature
TA
-
40 to + 85
Storage temperature
TSTG
-
65 to + 150




Description

The S3C9004/P9004/C9014/S3P9004 single-chip 8-bit microcontroller is fabricated using an advanced CMOS process. It is built around the powerful SAM87RI CPU core.

Stop and Idle power-down modes were implemented to reduce power consumption. To increase on-chip register space, the size of the internal register file was logically expanded. The S3C9004/P9004/C9014/S3P9004 has 4 K bytes of program memory on-chip.

Using the SAM87RI design approach, the following peripherals were integrated with the SAM87RI core, S3P9004 specifications:

  - Five configurable I/O ports (32 pins)
  - 12 bit-programmable pins for external interrupts
  - 8-bit timer/counter with three operating modes

The S3C9004/S3P9004/C9014/P9014 is a versatile microcontroller that can be used in a wide range of general purpose applications. The S3P9004 is especially suitable for use as a keyboard controller and is available in a 40-pin DIP and a 44-pin QFP package.
