Features:

` Input Format
   ITU-R BT601 / ITU-R BT656 Video Format
   Support Dual ITU-R BT656 Channel Port
` ITU Decoder
   ITU-R BT656 Decoding
   Support NTSC / PAL System
`Image Enhancement
   Image Boost-Up (Adaptive Contrast Control)
   Sharpness Control
   Color Hue & Saturation Control
`High-Quality Advanced Scaling
   Fully Programmable Image Scaling (Up to XGA)
   Independent Horizontal / Vertical Image Scale-Up and / or Scale-Down
`Built-in On-Screen Display
   Programmable Character RAM Fonts (256 Fonts)
   User Friendly Font Size (12x18) and Display Font Number of Window Frame (Up to 450)
   Various Font Attribute (Raster Enable, Blink, Character Border/Shadow Enable, Half-Tone, Intensity)
`Economic Clock Source
   External X-tal Application (Optional)
   Programmable Frequency Synthesize in Built-in PLL Core
`Supports I2C Bus & 3-Wired / 6-Wired Serial Host Interface
`R/G/B Gamma look-up table
`8 to 6 bit Dithering
`Built-in RGB Black Level / Bright / Contrast Control
`Application based Output Data Interface
   R/G/B Serial Output for RGB-Dot-Pixel LCD Panel
   R/G/B Parallel Output for RGB-Pixel Panel
   ITU-R656, 8-Bit 4:2:2 Data with Embedded
   Sync Output for External Application
`Fab. & PKG Information
   Fab. Process: L18 (0.18 m)
   PKG: 88-FBGA-0707 / 80-TQFP-1212
`Operating Conditions
   1.8 Volts Internal Core Logic, 3.3 Volts I/O Driver Power


Pinout

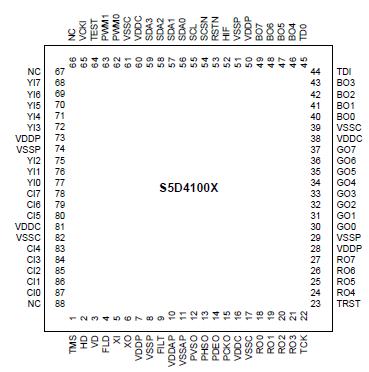

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply Voltage
VDD
1.8V VDD
2.7
V
3.3V VDD
3.8
Input Voltage
VIN
3.3V input buffer
3.8
3.3V interface /
5V tolerant input buffer
6.5
Output Voltage
VOUT
3.3V output buffer
2.7
1.8V interface /
3.3V tolerant output buffer
3.8
Latch Up Current
ILatch
± 100
mA
Storage temperature
TSTG
Plastic
- 65 to 150



Description

S5D4100X is a digital interface including Scaler, Image Enhancement, ITU-R VT656 Decoder, OSD, GAMMA and DITHER. S5D4100X supports two ITU-R BT656 Video inputs or one ITU-R BT601 input, and provides R/G/B Serial and ITU-R 656 Outputs or R/G/B Parallel Output
