S6A0070

Features: · Internal Memory - Character Generator ROM: 8320bits (192 cha. X 5 x 7 dots) & (32 cha. X 5 x 10 dots) - Character Generator RAM: 64 x 8 bits (8 cha. X 5 x 7 dots) - Display Data RAM: 80 ´ 8 bits for 80 digits (80 characters max.)· Power Supply Voltage: 2.7 to 5.5 V (VDD)· LCD...

product image

S6A0070 Picture
See larger image
SeekIC No. : 004482779 Detail

S6A0070: Features: · Internal Memory - Character Generator ROM: 8320bits (192 cha. X 5 x 7 dots) & (32 cha. X 5 x 10 dots) - Character Generator RAM: 64 x 8 bits (8 cha. X 5 x 7 dots) - Display Data RAM:...

S6A0070 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S6A0070
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Internal Memory
   - Character Generator ROM: 8320bits (192 cha. X 5 x 7 dots) & (32 cha. X 5 x 10 dots)
   - Character Generator RAM: 64 x 8 bits (8 cha. X 5 x 7 dots)
   - Display Data RAM: 80 ´ 8 bits for 80 digits (80 characters max.)
· Power Supply Voltage: 2.7 to 5.5 V (VDD)
· LCD Driving Voltage: 3.0 to 10.0 V (VDD - V5)
· Supply Voltage for display: 0 to -5V (V5)
· Programmable duty cycle: 1/8 duty, 1/11 duty or 1/16
· Internal oscillator with an external resistor
· Bare die or bumped chip available


Pinout

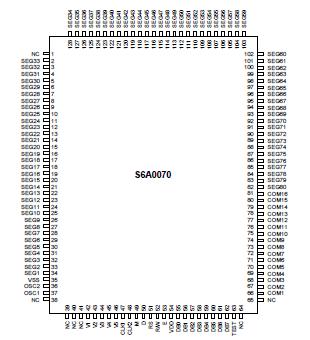

Connection Diagram


Specifications

Item
Symbol
Unit
Value
Power Supply Voltage
VDD
V
-0.3 to +7.0
LCD Drive Voltage
VLCD
V
VDD-15 to VDD+0.3
Input Voltage
VIN
V
-0.3 to VDD+0.3

NOTE: Voltage greater than above may damage the circuit (VDD  V1  V2  V3  V4  V5)


Description

The S6A0070 is a dot matrix LCD driver & controller LSI which is fabricated by low power CMOS technology. It is capable of displaying 1 or 2 lines with the 5 ´ 7 format or 1 line with the 5 ´ 10 dots format.

The mirror type of S6A0070: S6A1070
