Description



Features:

· Display driving bias: static ~ 1/5
· Power supply voltage: 2.7V to 5.5V
· Supply voltage for display: 3.0V to 13.0V (VLCD = VDD - VEE)
· Interface
· CMOS Process
· 100QFP or bare chip available


Pinout

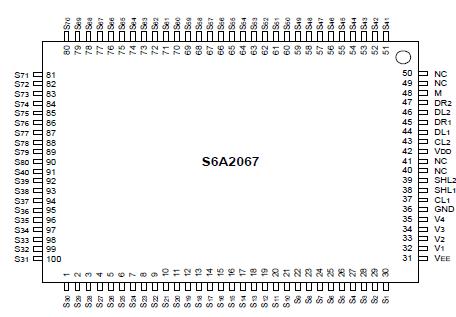

Connection Diagram


Specifications

Characteristics
Symbol
Value
Unit
Operating Voltage
VDD
-0.3 to +7.0
V
Driver Supply Voltage

VLCD

VDD-15.0 - VDD+0.3
V
Input Voltage 1
VlN1
-0.3 - VDD+0.3

V

Input Voltage 2 (V1 - V4)

VlN2

VDD+0.3 - VEE-0.3

V

Operating Temperature

TOPR

-30 - +85
Storage Temperature
TSTG
-55 - +125
* Voltage greater than above may damage the circuit
* VEE : connect a protection resistor (220 ± 5%)



Description

The S6A2067 is a LCD driver lC which is fabricated by low power CMOS technology. Basically this lC consists of 40 x 2 bit bi-directional shift register, 40 x 2 bit data latch and 40 x 2 bit LCD driver (refer to Figure 1). This lC can be used as segment driver.
