S6A2068
-
Suppliers
DataSheet
General Description
S6A2068 Maximum Ratings
| Characteristic | Symbol | Value | Unit |
| Operating Voltage | VDD | -0.3 to +7.0 | V |
| Driver Supply Voltage | VLCD | VDD - 11.5 to VDD + 0.3 | V |
| Input Voltage | VIN | -0.3 to VDD + 0.3 | V |
| Power Dissipation | PD | 500 | MW |
| Operating Temperature | TOPR | -30 to +85 | °C |
| Storage Temperature | TSTG | -55 to + 125 | °C |
NOTE: Voltage greater than above may damage the circuit (VDD V1 V2 V3 V4 V5)
S6A2068 Features
` Internal Memory
Character Generator ROM: 8,320bits
Character Generator RAM: 512 bits
Display Data RAM: 80* 8bits (80 characters max.)
` Power Supply Voltage; 2.7 to 5.5V
` Supply voltage for display: 0 to -5 V (V5)
` CMOS process
` 1/8 duty, 1/11 duty or 1/16 duty: programmable
(1/8 duty; 5* 7 dots format 1-line, 1/11 duly; 5 *10 dots format 1-line, 1/16 duty: 5* 7 dots format 2-line)
` 100 QFP or bare chip available
Character Generator ROM: 8,320bits
Character Generator RAM: 512 bits
Display Data RAM: 80* 8bits (80 characters max.)
` Power Supply Voltage; 2.7 to 5.5V
` Supply voltage for display: 0 to -5 V (V5)
` CMOS process
` 1/8 duty, 1/11 duty or 1/16 duty: programmable
(1/8 duty; 5* 7 dots format 1-line, 1/11 duly; 5 *10 dots format 1-line, 1/16 duty: 5* 7 dots format 2-line)
` 100 QFP or bare chip available

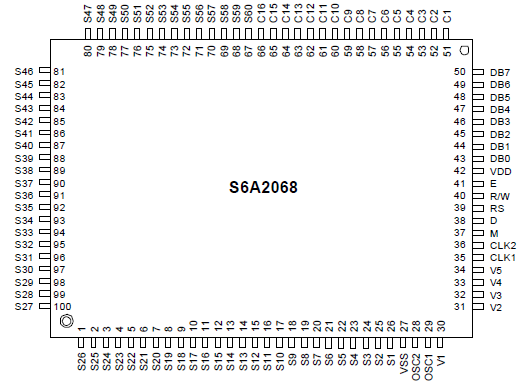

S6A2068 Connection Diagram
S6A2068X
