Product Details

Description



Features:

· Dot matrix LCD common driver with 64 channel output
· 64-bit shift register at internal LCD driver circuit
· Internal timing generator circuit for dynamic display
· Selection of master/slave mode
· Applicable LCD duty: 1/48, 1/64, 1/96, 1/128
· Power supply voltage: + 5V ± 10%
· LCD driving voltage: 8V - 17V (VDD-VEE)
· Interface
· High voltage CMOS process
· 100QFP / 100TQFP or bare chip available

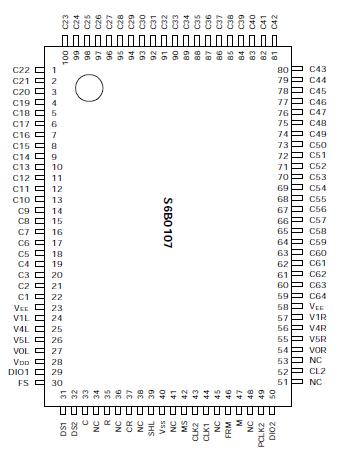

Pinout

Connection Diagram


Specifications

Characteristic
Symbol
Value
Unit
Note
Operating voltage
VDD
-0.3 to +7.0
V
(1)
Supply voltage
VEE
VDD-19.0 to VDD+0.3
V
(4)
Driver supply voltage
VB
-0.3 to VDD+0.3
V
(1), (2)
VLCD
VEE-0.3 to VDD+0.3
V
(3), (4)
Operating temperature
TOPR
-30 to +85
-
Storage temperature
TSTG
-55 to +125
-

1. Based on VSS = 0V
2. Applies to input terminals and I/O terminals at high impedance. (Except V0L(R), V1L(R), V4L(R) and V5L(R))
3. Applies to V0L(R), V1L(R), V4L(R) and V5L(R).
4. Voltage level: VDD V0L = V0R V1L = V1R  V4L = V4R V5L = V5R VEE.


Description

The S6B0107 (TQFP type: S6B2107) is an LCD driver LSI with 64 channel outputs for dot matrix liquid crystal graphic display systems. This device provides 64 shift registers and 64 output drivers. It generates the timing signal to control the S6B0108 (64 channel segment driver TQFP type: S6B2108). The S6B0107 is fabricated by low power CMOS high voltage process technology, and is composed of the liquid crystal display system in combination with the S6B0108 (64 channel segment driver).
