S7AH-12F1800 Selling Leads, Price trend, S7AH-12F1800 DataSheet download, circuit diagram from SeekIC.com

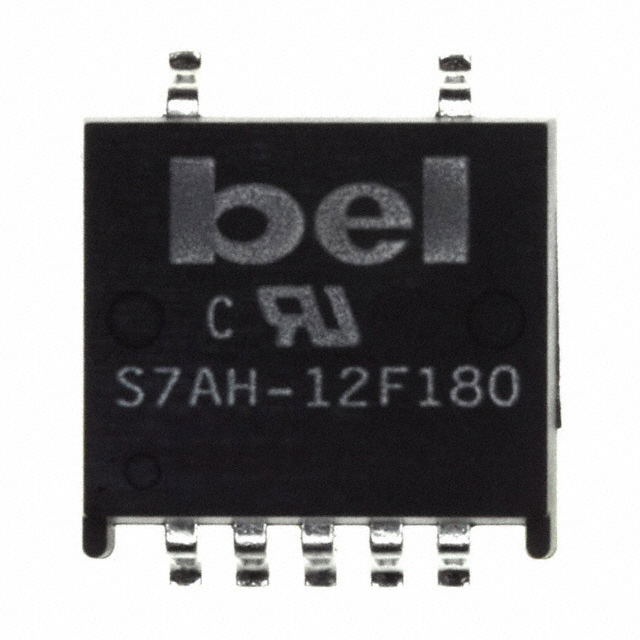

See larger image

SeekIC No. : 003654286 Detail

S7AH-12F1800: CONV DC/DC 12A 1.8V OUTPUT SMD

S7AH-12F1800 Data Sheet

Get Latest Price

Part Number:: S7AH-12F1800
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Series:	x7AH-12F	Manufacturer:	Bel Fuse Inc
Type:	Non-Isolated (POL)	Number of Outputs:	1
Voltage - Input (Min):	3V	Voltage - Input (Max):	5.5V
Voltage - Output 1:	1.8V	Voltage - Output 2:	-
Voltage - Output 3:	-	Current - Output (Max):	12A
Power (Watts) - Manufacture Series:	21W	Supply Voltage - Max :	3.6 V
Voltage - Isolation:	-	Features:	With Remote On/Off and UVLO
Mounting Type:	Surface Mount	Package / Case:	7-DIP SMD Module
Size / Dimension:	0.78" L x 0.70" W x 0.32" H (19.8mm x 17.8mm x 8.1mm)	Packaging:	Tube
Operating Temperature:	-40°C ~ 85°C

Description

Number of Outputs: 1
Voltage - Input (Max): 5.5V
Voltage - Output 2: -
Voltage - Output 3: -
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C
Voltage - Input (Min): 3V
Type: Non-Isolated (POL)
Voltage - Isolation: -
Packaging: Tube
Efficiency: 87%
Power (Watts) - Manufacture Series: 21W
Package / Case: 7-DIP SMD Module
Current - Output (Max): 12A
Features: With Remote On/Off and UVLO
Voltage - Output 1: 1.8V
Manufacturer: Bel Fuse Inc
Size / Dimension: 0.78" L x 0.70" W x 0.32" H (19.8mm x 17.8mm x 8.1mm)
Series: x7AH-12F

Parameters:

Technical/Catalog Information	S7AH-12F1800
Vendor	Bel Fuse Inc
Category	Power Supplies
Voltage - Input	3 ~ 5.5VDC
Output	1.8V
Power (Watts)	21.6W
Number of Outputs	1
1st Output	1.8 VDC @ 12A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Surface Mount
Packaging	Tube
Package / Case	7-SMD
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	S7AH 12F1800 S7AH12F1800 507 1124 5 ND 50711245ND 507-1124-5
