SA1920

Features: • Low current consumption• Outstanding low- and high-band noise figure• Excellent gain stability versus temperature and supply• Image reject high-band mixer with over 30 dB of rejection• Increased low-band LNA gain compression during analog transmission̶...

product image

SA1920 Picture
See larger image
SeekIC No. : 004483547 Detail

SA1920: Features: • Low current consumption• Outstanding low- and high-band noise figure• Excellent gain stability versus temperature and supply• Image reject high-band mixer with ov...

SA1920 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA1920
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low current consumption
• Outstanding low- and high-band noise figure
• Excellent gain stability versus temperature and supply
• Image reject high-band mixer with over 30 dB of rejection
• Increased low-band LNA gain compression during analog transmission
• LO input and output buffers
• Frequency doubler
• On chip logic for network selection and power down
• Very small outline package


Application

• 800 to 1000 MHz analog and digital receivers
• 1800 to 2000 MHz digital receivers
• Portable radios
• Digital mobile communications equipment


Pinout

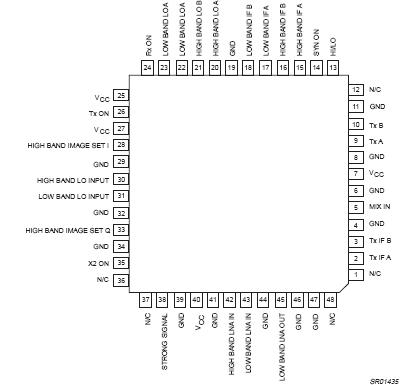

Connection Diagram


Specifications

QUANTITY SYMBOL VALUE UNIT
Input supply voltage at pins: 7, 25, 27, 40 VCC 4.75 V
Power dissipation PD 150 mW
Input power at all ports PIN +20 dBm
Operating temperature range (pin temp) TO 40 to+85
Storage temperature range Tsrg 65 to +125



Description

The SA1920 is an integrated dual-band RF front-end that operates at both cellular (AMPS, GSM and TDMA) and PCS/DCS (TDMA and GSM) frequencies, and is designed in a 13 GHz fT BiCMOS process-QUBiC1. The low-band is a combined low-noise amplifier (LNA) and mixer. The LNA has a 1.7 dB noise figure at 881 MHz with 17.5 dB of gain and an IIP3 of 5 dBm. The wide-dynamic range mixer has a 10 dB noise figure at 881 MHz with 9.5 dB of gain and an IIP3 of +5 dBm.

The high-band SA1920 contains a receiver front-end, doubler and a high frequency transmit mixer intended for closed loop transmitters. One advantage of the high-band architecture is an image-rejection mixer with over 30 dB of image rejection; thus, eliminating external filter cost while saving board space. The system noise figure is 4.2 dB at 1960 MHz with a power gain of 23.5 dB and an IIP3 of 12.5 dB.
