Purchase SA2421, In-stock SA2421 From SeekIC.
Package Cooled:SOP24
Part Number: SA2421
Package Cooled: SOP24
Description: The SA2421 transceiver is a combined lownoise amplifier, receive mixer, transmit mixer and LO buffer I...
- Table of contents:
SA2421
-
Suppliers
DataSheet
General Description
SA2421 General Description
The SA2421 transceiver is a combined lownoise amplifier, receive mixer, transmit mixer and LO buffer IC designed using a 20 GHz fT BiCMOS process, QUBiC2, for highperformance lowpower communication systems for 2.42.5 GHz applications. The LNA has a 3.2 dB noise figure at 2.45 GHz with 14.3 dB gain and an IP3 intercept of 3 dBm at the input. The widedynamicrange receive mixer has a 11.2 dB noise figure and an input IP3 of +2.5 dBm at
2.45 GHz. The nominal current drawn from a single 3 V supply is 34 mA in transmit mode and 20 mA in receive mode. The SA2421 differs from the SA2420 by removal of the LO doubler and LO switch. The LNA reverse isolation is improved, and a separate pin is allocated for the transmit output.
SA2421 Maximum Ratings
|
SYMBOL |
PARAMETER |
RATING |
UNITS |
|
VCC |
Supply voltage |
0.3 to +6 |
V |
|
VIN |
Voltage applied to any pin |
0.3 to (VCC + 0.3) |
V |
|
PD |
Power dissipation, Tamb = 25°C (still air) 24-Pin Plastic TSSOP |
555 |
mW |
|
TJMAX |
Maximum operating junction temperature |
150 |
°C |
|
PMAX |
Maximum power (RF/IF/LO pins) |
+20 |
dBm |
|
TSTG |
Storage temperature range |
65 to +150 |
°C |
1. Transients exceeding these conditions may damage the product.
2. Maximum dissipation is determined by the operating ambient temperature and the thermal resistance, and absolute maximum ratings may
impact product reliability JA: 24-Pin TSSOP = 117°C/W
3. IC is protected for ESD voltages up to 2000 V, human body model.
SA2421 Features
• Low current consumption: 34 mA nominal transmit mode and 20 mA nominal receive mode
• High system power gain: 24 dB (LNA + Mixer) at 2.45 GHz
• Excellent gain stability versus temperature and supply voltage
• Separate Rx IN and Tx OUT pins
• Wide IF range: 50500 MHz
• 10dBm typical LO input power
• Improved LNA reverse isolation S12
• TSSOP24 package
• High system power gain: 24 dB (LNA + Mixer) at 2.45 GHz
• Excellent gain stability versus temperature and supply voltage
• Separate Rx IN and Tx OUT pins
• Wide IF range: 50500 MHz
• 10dBm typical LO input power
• Improved LNA reverse isolation S12
• TSSOP24 package
SA2421 Typical Application
• IEEE 802.11 (WLAN)
• 2.45 GHz ISM band
• 2.45 GHz ISM band

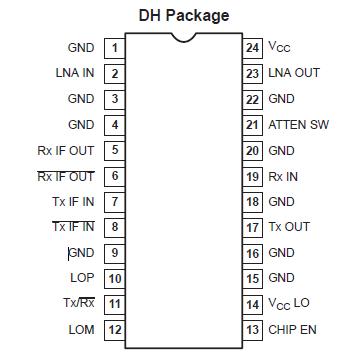

SA2421 Connection Diagram
SA2421
