SA25C1024

Features: • Saifun NROM™ Flash Cell• Serial Peripheral Interface (SPI) Compatible• Supports SPI Modes 0 (0,0) and 3 (1,1)• Byte and Page Write Modes (up to 128 bytes)• Single Supply Voltage: 2.7V to 3.6V (L) 4.5V to 5.5V (H)• 10MHz Clock Rate• Bloc...

product image

SA25C1024 Picture
See larger image
SeekIC No. : 004483602 Detail

SA25C1024: Features: • Saifun NROM™ Flash Cell• Serial Peripheral Interface (SPI) Compatible• Supports SPI Modes 0 (0,0) and 3 (1,1)• Byte and Page Write Modes (up to 128 bytes)&#...

SA25C1024 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA25C1024
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Saifun NROM™ Flash Cell
• Serial Peripheral Interface (SPI) Compatible
• Supports SPI Modes 0 (0,0) and 3 (1,1)
• Byte and Page Write Modes (up to 128 bytes)
• Single Supply Voltage:
2.7V to 3.6V (L)
4.5V to 5.5V (H)
• 10MHz Clock Rate
• Block Write Protection:
Protect ¼, ½, or Entire Array
• Write Protect Pin and Write Disable Instructions of both Hardware and Software Data Protection
• Self-timed Write Cycle (10mS max)
• 100,000 Write Cycles (Minimum)
• 20 Year Data Retention
• Low-power Standby Current (less than 1A)
• 8-SOIC Narrow Package (0.150" Wide Body, JEDEC SOIC)
• Temperature Range:
Industrial: -40°C to +85°C
Commercial: 0°C to +70°C


Pinout

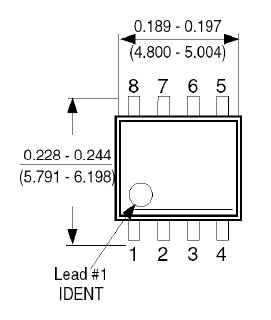

Connection Diagram


Specifications

Ambient Storage Temperature              -65 to +150
All input or output voltages with           4.5 V to -0.3 V (L)
respect to Ground                              6.5 V to -0.3 V (H)
Lead Temperature(Soldering, 10 seconds)            +235



Description

SA25C1024 is a 1Mb CMOS non-volatile serial EEPROM, organized as a 128K x 8-bit memory. The SA25C1024 is available in a space-saving, 8-lead narrow SOIC package. In addition, it is available in a wide range of voltages 2.7-3.6 V and 4.5-5.5 V.

The SA25C1024 is enabled through the Chip Select (CSb) pin and is accessed via a 3-wire interface consisting of Serial Data Input (SI), Serial Data Output (SO) and Serial Data Clock (SCK). All write cycles are completely self-timed, and no separate ERASE cycle is required before write.
