SA3601

Features: • Low current consumption: LB ICC = 14 mA; HB ICC = 15.5 mA• Outstanding low- and high-band noise figure• LNAs with gain control (30 dB gain step)• LO input and output buffers• Frequency doubler• On chip logic for network selection and power down•...

product image

SA3601 Picture
See larger image
SeekIC No. : 004483638 Detail

SA3601: Features: • Low current consumption: LB ICC = 14 mA; HB ICC = 15.5 mA• Outstanding low- and high-band noise figure• LNAs with gain control (30 dB gain step)• LO input and out...

SA3601 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA3601
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low current consumption: LB ICC = 14 mA; HB ICC = 15.5 mA
• Outstanding low- and high-band noise figure
• LNAs with gain control (30 dB gain step)
• LO input and output buffers
• Frequency doubler
• On chip logic for network selection and power down
• Very small outline package


Application

• 800 to 1000 MHz analog and digital receivers
• 1800 to 2000 MHz digital receivers
• Portable radios
• Mobile communications equipment

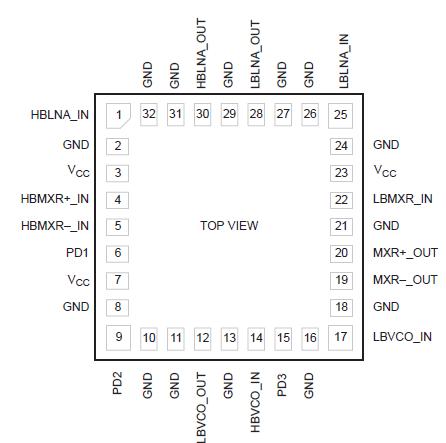

Pinout

Connection Diagram


Specifications

SYMBOL
 PARAMETER
LIMITS
UNITS
MIN.
MAX.
VCC
 Supply voltage
0.3
+4.5
V
VIN
 Voltage applied to any other pin
0.3
VCC+0.3
V
PD
 Power dissipation, Tamb = +25 °C (still air)
TBD
mW
TJMAX
 Maximum junction temperature
150
°C
PMAX
 Power input/output
+20
dBm
IMAX
 DC current into any I/O pin
10
+10
mA
TSTG
 Storage temperature range
-65
+150
°C
TO
 Operating temperature
-40
+85
°C
NOTES:
1. IC is protected for ESD voltages up to 500 V (human body model).


Description

The SA3601 is an integrated dual-band RF front-end that operates at both cellular (AMPS and TDMA) and PCS (TDMA) frequencies, and is designed in a 20 GHz fT BiCMOS process-QUBiC2. The low-band (LB) receiver is a combined low-noise amplifier (LNA) and mixer. The SA3601 LNA has a 1.7 dB noise figure (NF) at 881 MHz with 17 dB of gain and an IIP3 of 7 dBm. The wide-dynamic range mixer has a 9.5 dB NF at 881 MHz with 9.5 dB of gain and an IIP3 of +6 dBm.

The high-band (HB) receiver is a combined low-noise amplifier (LNA) and mixer, with the low-band and high-band mixers sharing the same mixer output. The SA3601 LNA has a 2.2 dB NF at 1960 MHz with 16 dB of gain and an IIP3 of 5 dBm. The wide-dynamic range mixer has a 8.5 dB NF at 1960 MHz with 8.5 dB of gain and an IIP3 of +5.5 dBm.
