Features:

• Integrated LNA output matching
• Excellent gain stability versus temperature and supply voltage
• LNA, mixer and LO buffer power down capability


Application

• IS-136 Standard systems
• Wireless radios


Pinout

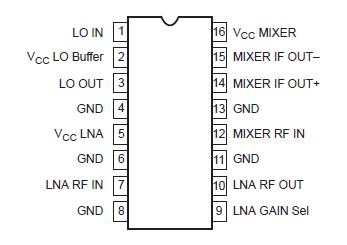

Connection Diagram


Specifications

SYMBOL
 PARAMETER
RATING
UNITS
VCC
 Supply voltage1
0.3 to +3.5
V
VIN
 Voltage applied to any pin
0.3 to (VCC + 0.3)
V
PD
 Power dissipation, Tamb = 25°C (still air)2
16-Pin Plastic TSSOP
TBD
mW
TJMAX
 Maximum operating junction temperature
150
°C
PMAX
 Maximum power input/output
+20
dBm
TSTG
 Storage temperature range
65 to +150
°C
NOTES:
1. Transients exceeding 3.6 V on VCC pin may damage product.
2. Maximum dissipation is determined by the operating ambient temperature and the thermal resistance,
    JA: 16-Pin TSSOP = TBD°C/W
3. Pins 14 and 15 are ESD sensitive (mixer outputs).


Description

The SA3603 is an integrated Low-Noise Amplifier (LNA) and mixer designed in a 30 GHz fT advanced BICMOS process, Qubic3, for high-performance low power Cellular-band communication systems. The SA3603 LNA has a 1.6 dB noise figure at 881 MHz with 17.5 dB gain and an IIP3 intercept of 4 dBm. The single-ended input, single balanced mixer has a 9.5 dB noise figure with 7.5 dB gain and IIP3 of +6.0 dBm at 881 MHz.
