Features:

• 8-bit DAC
• Serial-to-parallel converter
• Output pre-drivers
• Entire switch mode conversion
• Adaptable to 60° or 120° commutation
• Overcurrent protection

Application

• Motor controller for three-phase brushless DC motor
• Robotics
• Computer peripherals

Pinout

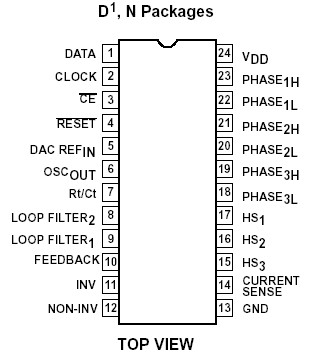

Connection Diagram

Specifications

SYMBOL	PARAMETER	RATING			UNIT
SYMBOL	PARAMETER	NE5570	SA5570	SE5570	UNIT
TA TJ TSTG	Temperature range Operating ambient Operating junction Storage	0 to 70 -55 to 150 -65 to 150	-40 to 85 -55 to 150 -65 to 150	-55 to 125 -55 to 150 -65 to 150	°C °C °C
VDD	Power supply Logic inputs, all	16 -0.3 to 15	16 -0.3 to 15	16 -0.3 to 15	V V

Description

The NE/SA/SE5570 is a three-phase brushless DC motor controller with a microprocessor-compatible serial input data port; 8-bit monotonic digital-to-analog converter; PWM comparator; oscillator; three Hall sensor inputs and six source/sink phase pre-drivers.
