SA607

Features: • Low power consumption: 3.5mA typical at 3V• Mixer input to >150MHz• Mixer conversion power gain of 17dB at 45MHz• XTAL oscillator effective to 150MHz (L.C. oscillator or external oscillator can be used at higher frequencies)• 102dB of IF Amp/Limiter gai...

product image

SA607 Picture
See larger image
SeekIC No. : 004483764 Detail

SA607: Features: • Low power consumption: 3.5mA typical at 3V• Mixer input to >150MHz• Mixer conversion power gain of 17dB at 45MHz• XTAL oscillator effective to 150MHz (L.C. osc...

SA607 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA607
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low power consumption: 3.5mA typical at 3V
• Mixer input to >150MHz
• Mixer conversion power gain of 17dB at 45MHz
• XTAL oscillator effective to 150MHz (L.C. oscillator or external oscillator can be used at higher frequencies)
• 102dB of IF Amp/Limiter gain
• 2MHz limiter small signal bandwidth
• Temperature compensated logarithmic Received Signal Strength Indicator (RSSI) with a 90dB dynamic range
• Low external component count; suitable for crystal/ceramic/LC filters
• Excellent sensitivity: 0.31V into 50 matching network for 12dB SINAD (Signal to Noise and Distortion ratio) for 1kHz tone, 8kHz deviation with RF at 45MHz and IF at 455kHz
• SA607 meets cellular radio specifications
• Audio output internal op amp
• RSSI output internal op amp
• Buffered frequency check output
• Internal op amps with rail-to-rail outputs
• ESD protection: Human Body Model 2kV
                            Robot Model 200V


Application

• Portable cellular radio FM IF
• Cordless phones
• Narrow band cellular applications (NAMPS/NTACS)
• RF level meter
• Spectrum analyzer
• Instrumentation
• FSK and ASK data receivers
• Log amps
• Portable high performance communication receivers
• Single conversion VHF receivers
• Wireless systems


Pinout

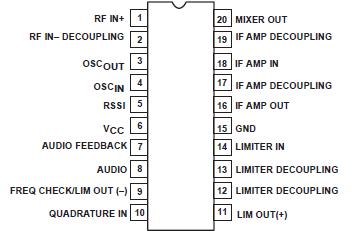

Connection Diagram


Specifications

SYMBOL PARAMETER RATING UNITS
VCC Single supply voltage 7 V
TSTG Storage temperature range -65 to +150 °C
TA Operating ambient temperature range SA607 -40 to +85 °C
JA Thermal impedance    D package
                                   DK package		 90
117		 °C/W



Description

The SA607 is a low voltage high performance monolithic FM IF system incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, quadrature detector, logarithmic received signal strength indicator (RSSI), voltage regulator and audio and RSSI op amps. The SA607 is available in 20-lead SOL (surface-mounted miniature package) and 20-lead SSOP package.

The SA607 was designed for portable communication applications and will function down to 2.7V. The RF section is similar to the famous SA605. The audio output has an internal amplifier with the feedback pin accessible. The RSSI output is buffered. The SA607 also has an extra limiter output. This signal is buffered from the output of the limiter and can be used to perform frequency check. This is accomplished by comparing a reference frequency with the
frequency check signal using a comparator to a varactor or PLL at the oscillator inputs.
