Part Number: SA8507S



MFG: SL

Package Cooled: SOP-20

D/C: 03+

Description: SA8507 is a automatic gain control system that is used for dynamic range compression and expansion. Ac...


Urgent Purchase

SA8507S General Description


SA8507 is a automatic gain control system that is used for dynamic range compression and expansion. According to the companding the signal, this can reduce the noise components. SA8507 includes compressor, expander, pre-amp, filter amp, limiter and mute/bypath logic.

SA8507S Maximum Ratings

Characteristic Symbol Value Unit
Supply Voltage VCC 10 V
Power Dissipation SA8507D PD 1000 mW
SA8507S 410 mW
Operating Temperature TOPR -22 ~ +70 °C
Storage Temperature TSTG -55 ~ +150 °C

SA8507S Features

· Wide supply voltage: 2.4V ~ 7V
· Easy gain control
· Mute/bypath logic
· Data in/out pin

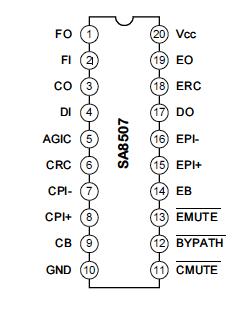

SA8507S Connection Diagram

SA8507S Connection Diagram
