MFG:PHI Package Cooled:DIP D/C:05/
MFG: PHI
Package Cooled: DIP
D/C: 05/
Description: The LED-driver is a bipolar integrated circuit made in an I2L compatible 18 volts process. The circuit...
The LED-driver is a bipolar integrated circuit made in an I2L compatible 18 volts process. The circuit is especially designed to drive four 7-segment LED displays with decimal point by means of multiplexing between two pairs of digits. It features an I2C-Bus slave transceiver interface with the possibility to program four different SLAVE ADDRESSES, a POWER RESET flag, 16 current sink OUTPUTS, controllable by software up to 21 mA, two multiplex drive outputs for common anode segments, an on-chip multiplex oscillator, control bits to select static, dynamic and blank mode, and one bit for segment test.

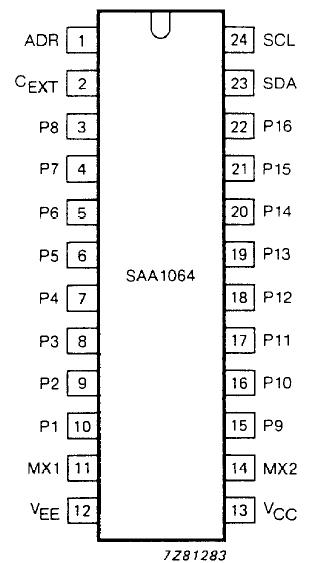

| PARAMETER | CONDITIONS | SYMBOL | MIN. | MAX. | UNIT |
| Supply voltage (pin 13) Supply current (pin 13) Total power dissipation 24-lead DIL (SOT101B) 24-lead SO (SO137A) SDA, SCL voltages Voltages ADR-MX1 and MX2-P16 Input/output current all pins Operating ambient temperature range Storage temperature range |
VEE = 0 V VEE = 0 V VEE = 0 V outputs OFF |
VCC ICC Ptot Ptot V23, 24 V1-11, V14-22 ± II/O Tamb Tstg |
-0.5 -50 -0.5 -0.5 - -40 -55 |
18 200 1000 500 5.9 VCC + 0.5 10 +85 +150 |
V mA mW mW V V mA °C °C |
SAA1064
PDF/DataSheet Download
