Features:

· Programmable to seven standards
· Additional outputs to simplify signal processing
· Can be synchronized to an external sync. signal
· Option to select the 524/624 line mode instead of the 525/625 line mode
· Lock from subcarrier to line frequency


Pinout

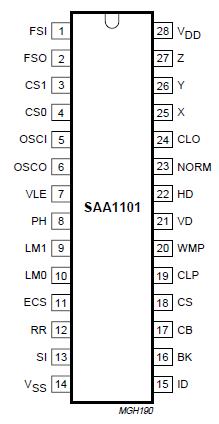

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD supply voltage -0.5 +7 V
VI input voltage -0.5 VDD + 0.5 (1) V
II maximum input current - ±10 mA
IO maximum output current - ±10 mA
IDD maximum supply current in VDD - 25 mA
Ptot maximum power dissipation - 400 mW
Tstg storage temperature range -55 +150 °C

Note
1. Input voltage should not exceed 7 V.


Description

The SAA1101 is a Universal Sync Generator (USG) and is designed for application in video sources such as cameras, film scanners, video generators and associated apparatus. The SAA1101 can be considered as a successor to the SAA1043 sync generator and the SAA1044 subcarrier coupling IC.
