Part Number: SAA1310



MFG: PHILIPS

Package Cooled: DIP



Description: The SAA1310 provides an interface between the tape control head in the VHS deck-electronics.Th...


Urgent Purchase

SAA1310 General Description


The SAA1310 provides an interface between the tape control head in the VHS deck-electronics.

The circuit also includes an interface between sensors in the deck mechanics and the microprocessor.

SAA1310 Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP supply voltage range   0 6.0 V
VI/VO voltage on all pins except pins 11 (12) and 13 (14) 0 VP V
VO output voltage on pins 11 (12) and 13 (14)   0 18 V
Tstg storage temperature range   -65 +150 °C
Tamb ambient temperature range   0 +70 °C

SAA1310 Features

· Full support of VISS and VASS mode (VHS Index/Address Search System)
· Read, write and overwrite of Tape Control/head signal (CTL)
· Power-ON and power-failure indicator
· 4 general purpose comparators for interface between sensors and microprocessor
· 2 comparators have a 100 mA output driver
· PAL and NTSC compatible

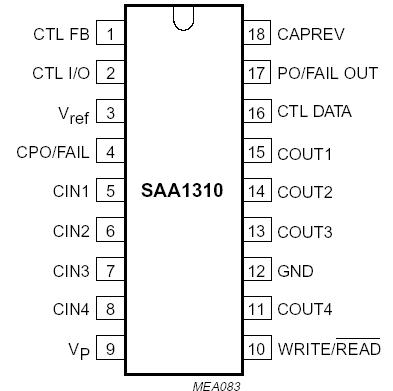

SAA1310 Connection Diagram

SAA1310 Connection Diagram
