SAA1501T

Features: · High level of integration to allow assembly in intelligent battery packs· Accurate charge and discharge account· Large dynamic range of charge and discharge currents· Independent settings of charge and discharge efficiency· 2 V minimum supply voltage (2 cell operation)· Temperature pro...

product image

SAA1501T Picture
See larger image
SeekIC No. : 004483876 Detail

SAA1501T: Features: · High level of integration to allow assembly in intelligent battery packs· Accurate charge and discharge account· Large dynamic range of charge and discharge currents· Independent setting...

SAA1501T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA1501T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High level of integration to allow assembly in intelligent battery packs
· Accurate charge and discharge account
· Large dynamic range of charge and discharge currents
· Independent settings of charge and discharge efficiency
· 2 V minimum supply voltage (2 cell operation)
· Temperature protection of batteries during charging
· Temperature controlled self-discharge
· Accurate charge current regulation
· Two charge amount display modes, LCD and LED.

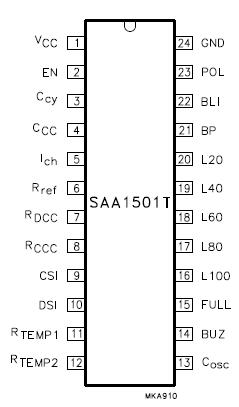

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCC supply voltage   -0.5 +5.5 V
Vn1 input voltage at pins 9 to 12   -0.5 +1.0 V
Vn2 input voltage at pins 2 to 4, 13 to 20, 22
and 23		   -0.5 VCC V
V voltage difference between pins 10 and
7 and between pins 9 and 8		   -2.0 +2.0 V
ICC supply current   - 80 mA
IGND power ground supply current   - -80 mA
In supply current at pins 5 to 8   - -1 mA
Ptot total power dissipation Tamb = 70 °C - 0.75 W
Tstg storage temperature   -55 +150 °C
Tj junction temperature   - +150 °C
Tamb operating ambient temperature   -10 +75 °C



Description

The SAA1501T is intended to be used as a battery monitor and charge current control circuit in rechargeable battery
systems.

The SAA1501T is processed in BiCMOS technology where the benefits of mixed bipolar and CMOS technology is fully utilized to achieve high accuracy measurements and digital signal processing in the same device. The general function of the integrated circuit SAA1501T is a Coulomb counter. During battery charging, the charge current and charge time are registered in a Coulomb counter. During discharge, the discharge current and time are recorded. The momentary charge amount of the batteries can be displayed either on an LCD screen or on an LED bargraph. Using the SAA1501T, intelligent batteries or intelligent battery powered systems can be easily designed with only a few external components.
