SAA3010

Features: · Low voltage requirement· Biphase transmission technique· Single pin oscillator· Test mode facilityPinoutSpecifications PARAMETER SYMBOL MIN. MAX. UNIT Supply voltage rangeInput voltage range (note 1)Output voltage range (note 1)Input currentOutput currentMaximum power dissi...

product image

SAA3010 Picture
See larger image
SeekIC No. : 004483896 Detail

SAA3010: Features: · Low voltage requirement· Biphase transmission technique· Single pin oscillator· Test mode facilityPinoutSpecifications PARAMETER SYMBOL MIN. MAX. UNIT Supply voltage rangeInp...

SAA3010 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA3010
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low voltage requirement
· Biphase transmission technique
· Single pin oscillator
· Test mode facility


Pinout

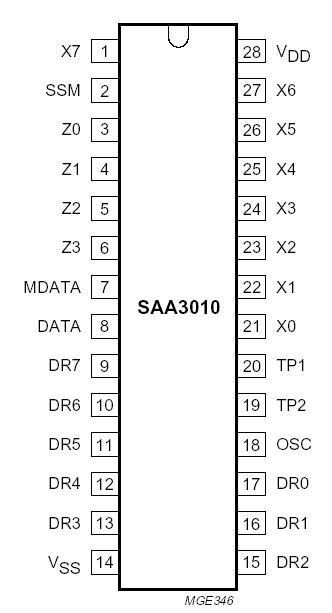

Connection Diagram


Specifications

PARAMETER SYMBOL MIN. MAX. UNIT
Supply voltage range

Input voltage range (note 1)

Output voltage range (note 1)

Input current

Output current

Maximum power dissipation

OSC output

other outputs

Total power dissipation

Operating ambient temperature range

Storage temperature range		 VDD

VI

VO

II

IO


PO

PO

Ptot

Tamb

Tstg		 -0.5

-0.5

-0.5

-

-


-

-

-

-25

-55		 8.5

VDD+0.5

VDD+0.5

±10

±10


50

100

200

+85

+150		 V

V

V

mA

mA


mW

mW

mW

°C

°C
Note
1. VDD+0.5 V must not exceed 9.0 V.


Description

The SAA3010 is intended as a general purpose (RC-5) infrared remote control system for use where a low voltage supply and a large debounce time are expected.

The SAA3010 can generate 2048 different commands and utilizes a keyboard with a single pole switch for each key. The commands are arranged so that 32 systems can be addressed, each system containing 64 different commands. The keyboard interconnection is illustrated by Fig.3.

The SAA3010 response to legal (one key pressed at a time) and illegal (more than one key pressed at a time) keyboard operation is specified in the section "Keyboard operation".
