SAA3008

Features: · Modulated transmission· Ceramic resonator controlled frequency· Data-word-start with reference time of unique start pattern· Supply voltage range 2 V to 6.5 V· 40 mA output current capability· Very low standby current (< 4 mA at VDD = 6 V)· Up to 20 subsystem address groups; up to 1...

product image

SAA3008 Picture
See larger image
SeekIC No. : 004483895 Detail

SAA3008: Features: · Modulated transmission· Ceramic resonator controlled frequency· Data-word-start with reference time of unique start pattern· Supply voltage range 2 V to 6.5 V· 40 mA output current capab...

SAA3008 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA3008
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Modulated transmission
· Ceramic resonator controlled frequency
· Data-word-start with reference time of unique start pattern
· Supply voltage range 2 V to 6.5 V
· 40 mA output current capability
· Very low standby current (< 4 mA at VDD = 6 V)
· Up to 20 subsystem address groups; up to 1280 commands
· Up to 64 commands per subsystem address; up to 1280 commands
· Requires few additional components


Pinout

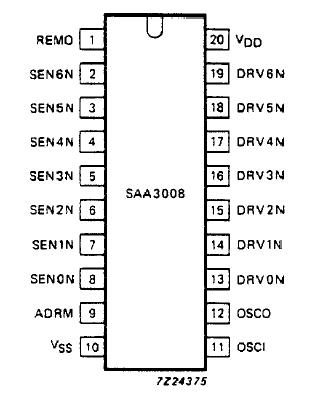

Connection Diagram


Specifications

PARAMETER CONDITIONS SYMBOL MIN. MAX. UNIT
Supply voltage range

Input voltage range

Output voltage range

Total power dissipation
DIL package (SOT146)
mini-pack (SO20; SOT163A)

Power dissipation
matrix outputs DRV0N to DRV6N
remote data output REMO

Operating ambient temperature range

Storage temperature range		   VDD

VI

VO

Ptot

Ptot

PO

PO

Tamb

Tstg		 -0.3

-0.3

-0.3

-

-

-

-

-20

-20		 +7

VDD + 0.3

VDD + 0.3

300

200

50

200

+70

+125		 V

V

V

mW

mW

mW

mW

°C

°C



Description

The SAA3008 transmitter IC is designed for infrared remote control systems. SAA3008 has a capacity for 1280 commands arranged in 20 sub-system address groups of 64 commands each. The subsystem address may be selected by press-button, slider switches or be hard-wired.

Commands are transmitted in patterns which are pulse distance coded. Modulated pulse transmissions allow a narrow-band receiver to be used for improved noise rejection. The modulation frequency of the SAA3008 is 38 kHz which is 1/12 of the oscillator frequency of 455 kHz (typical).
