General Description
SAA3049A General Description
The main function of the SAA3049A is to check and convert the received coded data (RECS80/RC5) into latched binary outputs. The device address can be hard-wired for a particular address, allowing several devices in one location. Alternatively, received data with any address can be accepted; the received data and address are then outputs.
SAA3049A Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
| VCC VI II IO Ptot Po IDD ISS Tamb Tstg |
supply voltage input voltage DC input current DC output current total power dissipation power dissipation per output positive supply current negative supply current operating ambient temperature storage temperature |
any pin any pin any pin |
-0.5 -0.5 - - - - -50 -100 -40 -65 |
+7 VCC + 0.5 -10 10 125 30 +50 +50 +85 +150 |
V V mA mA mW mW mA mA °C °C |
SAA3049A Features
· Decodes 64 remote control commands with a maximum of 32 subaddresses
· Accepts RECS80 codes with pulse position modulation (SAA3004, SAA3007, SAA3008) or RC5 codes with bi-phase transmission (SAA3006, SAA3010)
· Suitable for low voltage and low SAA3049A supply current applications
· Adding circuitry for binary decoding allows a maximum of 2048 commands to be used, for example 1-of-16 decoder (HEF4515).
· Accepts RECS80 codes with pulse position modulation (SAA3004, SAA3007, SAA3008) or RC5 codes with bi-phase transmission (SAA3006, SAA3010)
· Suitable for low voltage and low SAA3049A supply current applications
· Adding circuitry for binary decoding allows a maximum of 2048 commands to be used, for example 1-of-16 decoder (HEF4515).

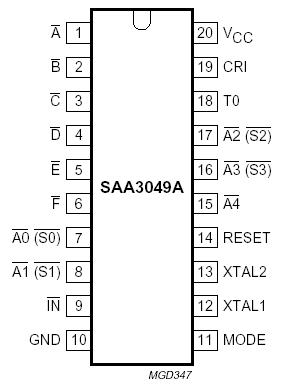

SAA3049A Connection Diagram
SAA3049A
PDF/DataSheet Download
- Datasheet: SAA3049A
- File Size: 95011 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
